| Control Method: | PLC Programmed Control | Power: | AC 220V / 50HZ |
|---|---|---|---|
| Product Name: | Furniture Testing Equipment | Clamping Speed: | 50-300mm / Min |
| Type: | Package Clamp Testing Machine | Standard: | ASTM D6055 |
| High Light: | packaging drop test equipment,paper and packaging material testing instruments |
||

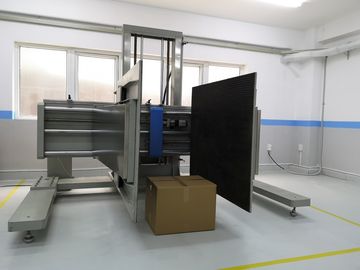

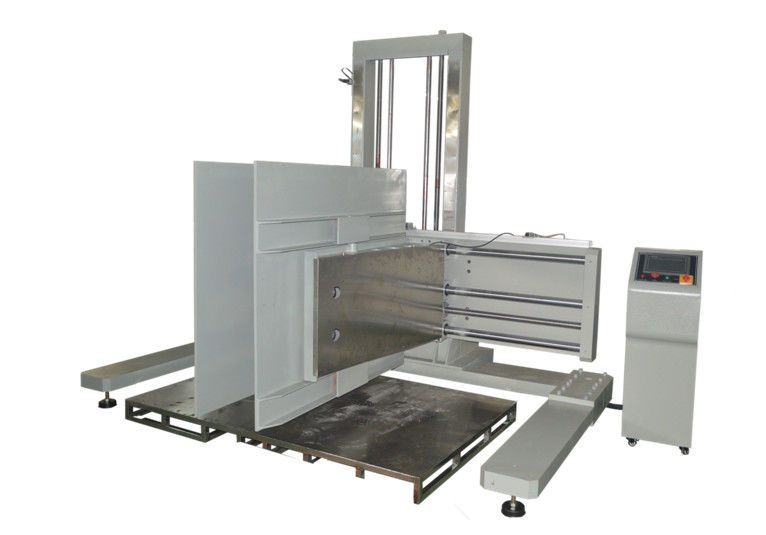

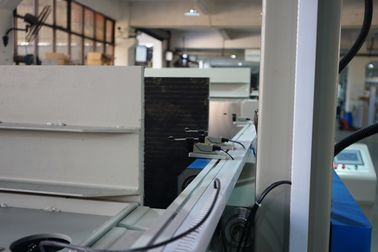

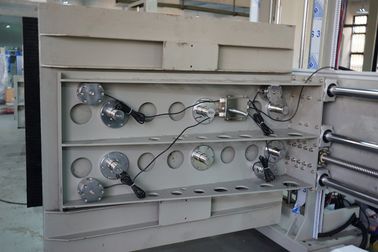

PLC Control Package Carton CompressionTest/ Testing Machine
Clamp Compression Testing Method of Large Products:
1. Before placing the packaged product between platens, verify that the clamp force using the clamp indicator. The indicator should be placed between the axes of the platen articulation points approximately 1/2 way up the platens.
2. Each time the product is clamped, the force should be applied for a minimum of 15 seconds and not to exceed 1 minute.
3. Apply the clamp force on the sample with the platens resting on the floor and the front edge of the platens flush with the front of the package (see flush platen photo 4). If the package is too large for the clamps to be flush to front edge (i.e., large refrigerator, tractor etc.), clamp as close to the edge as possible.
4. Clamp the product a total of 10 times in the flush orientation.
5. Apply the clamp force on the packaged product with the platens in a 6×6 inch(15.2x15.2cm) offset position(see fig 5 ). Both the horizontal and vertical offset dimensions are measured at the front bottom corner of the platen. If the package is too large for the clamp to be positioned 6-inches from the front edge (i.e., large refrigerator, tractor etc.), clamp as close to this position as possible.
1) Exception number 1: for large products with an obvious, visible external skid(see fig 6), offset clamp testing is not conducted if the product does not extend beyond any part of the skid and there is some form of handling graphic or note that indicates to clamp only from the skid. If there is no graphic or not indicating this or there is some overhang beyond the skid, then the entire clamp test protocol is conducted.
2) Exception number 2: If the product height, when placed in its normal shipping orientation, is ≤ 12 inches, the 6 x6 inch offset testing is not conducted.
6. Clamp the product a total of 10 times with the clamp in the 6 x6 inch offset position.
7. Repeat step 5.2.5 except with a 2 x6 inch offset clamp position. The 2 x6 inch offset is similar to the 6 x6 inch offset except the platens are oriented such that they are 2-inches from the floor and 6-inches back from the package’s front edge. If the package is too large for the clamps to be positioned 2-inches from the front edge (i.e., large refrigerator, tractor etc.), clamp as close to this position as possible.
8. Repeat flush and offset clamping on all other sides of the product that are indicated in the handling graphics as acceptable for clamp handling.
According to verdict standards, if there is one item failed the test, then put forward the “Test Failure Handling Sheet
Safety protection:
Overload protection, overvoltage protection & limited position protection device
| Model | HD-A534 |
| Design standard | ASTM D642, ASTM D6055, American SEARS enterprise standard |
| Sample shape | parallelepiped transport package |
| Maximum test weight | 500KG |
| Clamping pressure | 400-3000Lb (adjustable) pressure can be applied on the corresponding surface according to the transportation diagram on the test sample |
| Plywood size | H48in * D48in |
| Clamping plate height adjustment | 0-1000mm |
| Lifting speed | 50-300mm / min, set fixed speed |
| Spreading plate width | 200-2000mm |
| Dimensions | 2000 * 2800 * 2350mm |
| Sensor accuracy | 1/100000 |
| Measurement accuracy | 1% |
| Clamping displacement accuracy | ± 0.5MM |
| Power controller | Touch screen Chinese display maximum power value burst |
| Splint requirements | Two gripping plates are 2000lb parallel and flat without deformation under working conditions, the vertical state between the splint and the floor, the thickness of the splint is ≥15mm, the splint can realize the action and cycle of clamping, opening, rising, and lowering cycle |
| Automatic stop mode | set the upper and lower limits to stop |
| Transmission mode | servo motor controls clamping force, and AC motor controls rise and fall |
| Protection device | leakage protection, travel limit device |
| Working voltage | AC 220V / 50HZ |
Specifications:
Package clamp testing machine
1. Up to ASTM D6055
2. PLC control
