Simulated Package Testing Equipment , Packaging Incline Impact Strength Tester

Brand Name:	HAIDA
Model Number:	HD-A523
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Appearance Size:

7000x2000x2300 (L × W × H) Mm

Load:

0 ~ 600KG;

Impact Panel Size:

1600 X 2300mm

Maximum Sliding Length:

2000mm (to Agreed)

Impact Velocity Error:

≤±5%

Transmission Mode:

Pneumatic Device + Reducer + Release

Supply Ability:

300 Sets per Month Haida

Highlight:

packaging drop test equipment

paper and packaging material testing instruments

Product Description

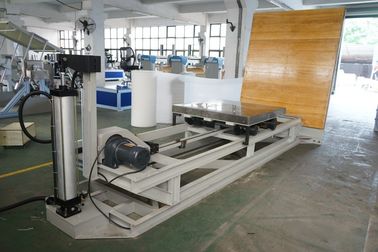

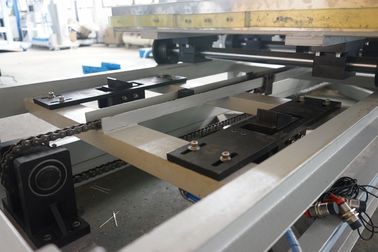

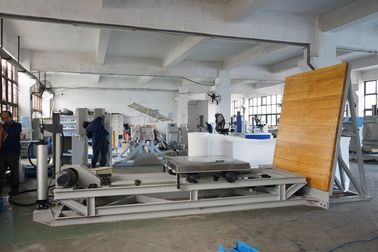

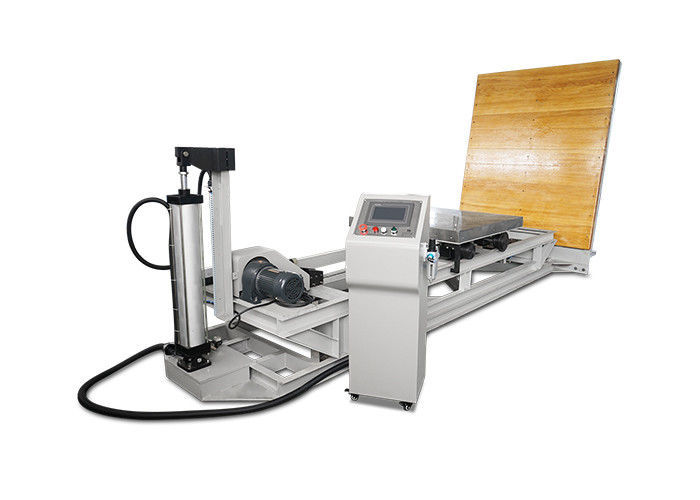

Simulated Package Testing Equipment , Packaging Incline Impact Strength Tester

Introduction:

Incline impact tester can detect the ability of the product packaging to resist damage in the actual environment, such as handling, stacking of the shelves, sliding of the motor, loading and unloading of the locomotives, transportation of the products, etc., in line with ISTA standards.

Features:

1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.

2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.

3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.

4. In order to keep the test staff completely safe, the tester is with remote control function.

5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.

Specifications (table 1)

Item	Specification
Appearance size	7000x2000x2300 (L × W × H) mm
Load	0 ~ 600KG;
Impact panel size	1600 x 2300mm
Maximum sliding length	2000mm (to agreed);
Impact speed range	1.3 ～ 2.3m / s
Impact speed error	≤ ± 5%;
Tread table size	1400x1200mm; (customizable)
Power supply voltage	380V, 50 / 60Hz;
Working environment	temperature 23 ～ 40 ℃, humidity≤80% (no condensation);
Control system	PLC control.
Transmission mode	pneumatic device + reducer + release
Customization	can be customized according to customer's special index requirements
