Horizontal Thrust Furniture Testing Machines For Chair Arm And Leg Durability

Brand Name:	HAIDA
Model Number:	HD-F735
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE

Power:

AC 220V,50Hz

Product Name:

Furniture Testing Equipment

Air Supply:

≥0.6kgf/cm²

Testing Speed:

10-30 Times/min

Sensor:

200KG(four In Total)

Control Pressure Mode:

Servo Proportional Valve Control

Supply Ability:

300 Sets per Month Haida

Highlight:

fatigue testing equipment

impact testing machine

Product Description

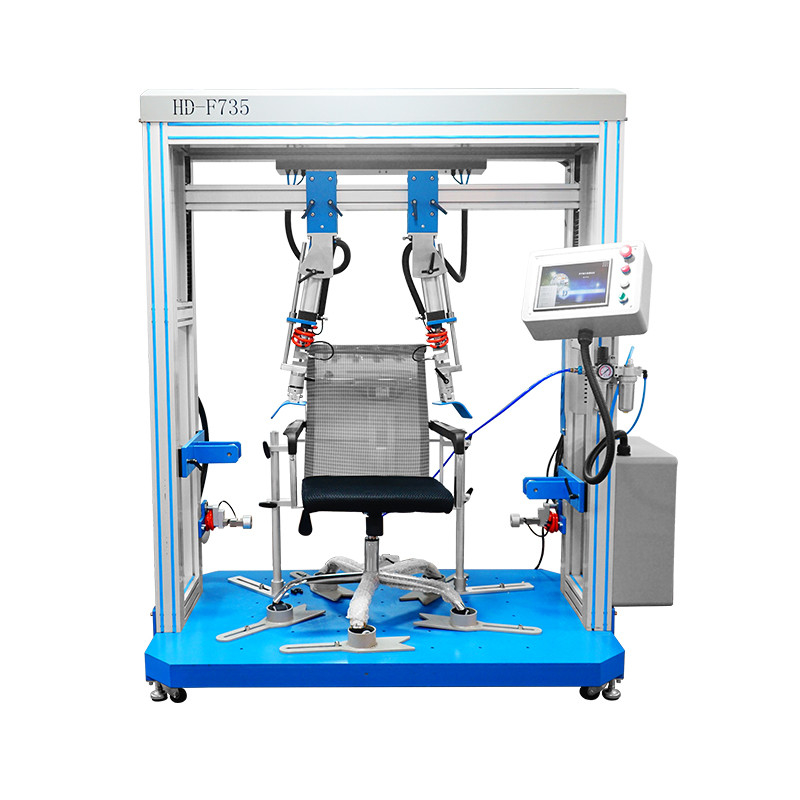

Horizontal Thrust Furniture Testing Machines For Chair Arm and Leg Durability

PRODUCTS DESCRIPTION:

The use of Chair Arm and Leg Durability Testing Machine to evaluate the ability of the chair to withstand stresses that occur as a result of repetitive loading that can be imposed on the armrest structure. Loading of this type is the result of using the armrests as a support when getting into or out of the chair.

Horizontal Thrust Furniture Testing Machines For Chair Arm And Leg Durability 0

GENERL SPECIFICATIONS

Packaging Dimensions: (W*D*H)1840*1400*2210mm;5.68cbm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight:480kg

HS Code: 9024800000

DESIGN STANDARD:

BIFMAX5.1:EN 1728

STANDARD FEATURES

Item	Description
Sensor	200KG(four in total)
Testing Speed	10-30 times/min

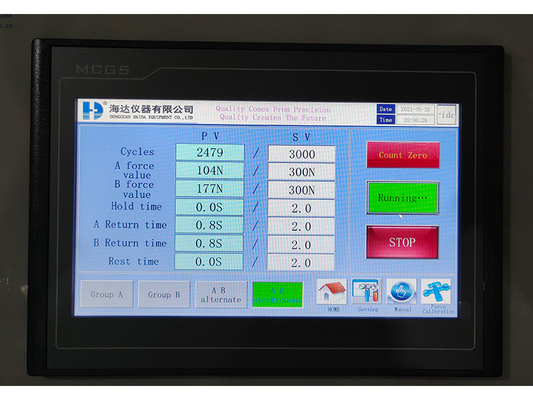

Display mode	touch screen display
Control mode	PLC control
Control pressure mode	servo proportional valve control
Test chair arm height	(500~750mm)
Test times	:1-999999 times (arbitrary setting)
The power supply	AC /220V, 5A, 50HZ
Air Supply	≥0.6kgf/cm²
The engine power	200W
The machine size	LxWxH=2400x1000x1950 mm

CONFIGURATION:

Configuration	Name	Details
Items	Documents	Certificate of quality1 piece; Accessories list1 piece; Instruction Book*1piece;
	Force sensor	2kN2,1kN1
	Power line	1 piece
	Air pipe	Φ 8 tracheal * 1
	Fixture	Armrest fixture *2 sets (American standard)
		φ203 fixture *2 sets
		side limit fixture *2 sets
		caster anti-rotation fixture *5 sets
		chair foot strength test fixture *1 set
		armrest horizontal static load test fixture *2 sets
Optional	Air compressor (table)	It is recommended to buy more than 3p
Optional	Fixture	Armrest fixture(European standard)； armrest fixture(national standard)； φ100 fixture

HAIDA INTRODUCTION

Founded in 2004, Our Group is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series , Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.

Horizontal Thrust Furniture Testing Machines For Chair Arm And Leg Durability 1
