Electronic Furniture Testing Machines , Chair Seating Vertical Force Resistance Tester

Brand Name:	HAIDA
Model Number:	HD-F733
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Control Method:

PLCand LCD Display

Counter:

0-999999；memory；output Control

Cylinder Stroke:

10 ~ 500 Mm

Product Name:

Furniture Testing Equipment

Use:

Vertical Pressure Testing, Destructive Testing And Fatigue Testing

Type:

Chair Seating Vertical Force Resistance Tester

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

impact testing machine

Product Description

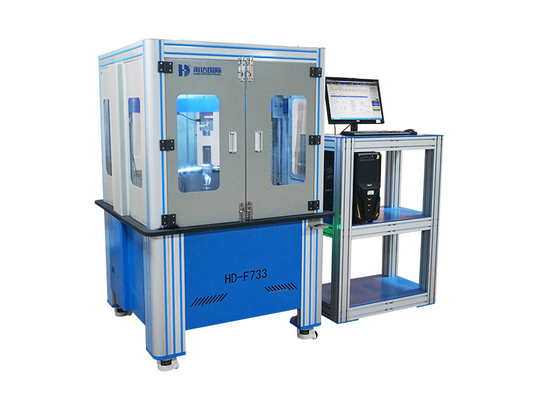

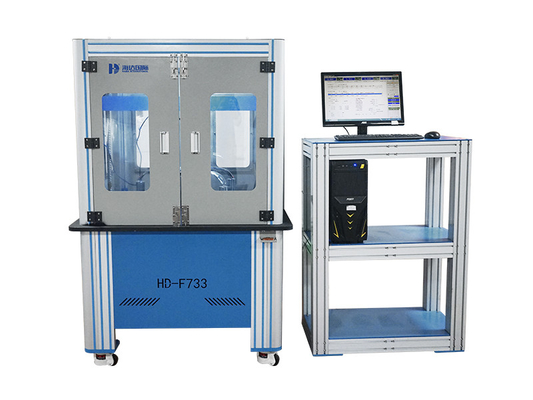

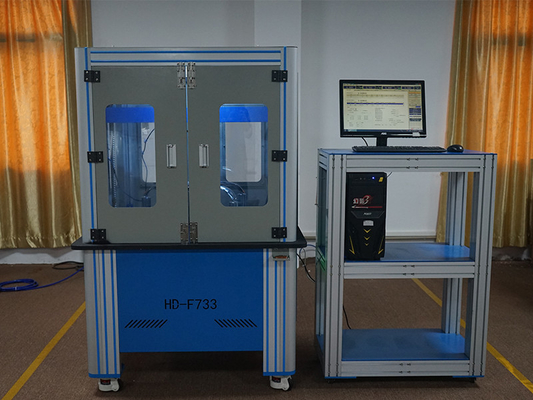

Electronic Furniture Testing Machines , Chair Seating Vertical Force Resistance Tester

Introduction

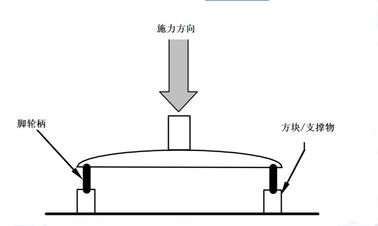

Chair Seating Vertical Force Resistance Tester is used for the vertical pressure testing, destructive testing and fatigue testing use of the office chair Ipomoea base (Star Base) repeated pressure loading in setting force test cycle, as the fatigue test. Pressure on the size of the holding pressure time and cycle number of tests can be adjusted.

Electronic Furniture Testing Machines , Chair Seating Vertical Force Resistance Tester 0

Main Parameters:

1,Bifma × 5.1 Section 8
2,Output rated pressure	> 3000KG
3,Stroke 10 ~ 500 mm, adjustable speed range 0-50 mm pole control servo planetary reducer + domestic + servo motor
4,Can test the maximum five-star foot diameter less than 900mm
5,Dwell time, the machine, the light of the sample changes and automatically adjust and compensate for the pressure difference, stable pressure test packing process given.
6,The peak value of the machine with force, you can record the maximum damage value
7,Controlmode	PLCand LCD display
8,Counter	0 to 999,999 times, also choose a single cycle, in line with the requirements of the test standard.
9,The machine with iron mesh and shatterproof film protective cover to prevent debris pop-up specimen during testing.

Item	Description
Force transducer	30,000N
Test force	1～30,000N
Display mode	Computer monitor
Control mode	Computer software control
Power supply	AC /220V,10A,50HZ
Power	850W
Test speed	0.1-120 times /min
Machine size	LxWxH=1100x1100x1650 mm
Maximum test sample size	1000mm*1000mm
