|Control Method:||PLC Control||Power:||Electronic|
|Product Name:||Furniture Testing Equipment||Use:||Rolling Office Chair|
|Standard:||QB/T2280-2007 / ANSI / BIFMA X5.1 / EN1335: 2000||Measuring Distance:||250mm ~ 500mm|
fatigue testing equipment,
impact testing machine

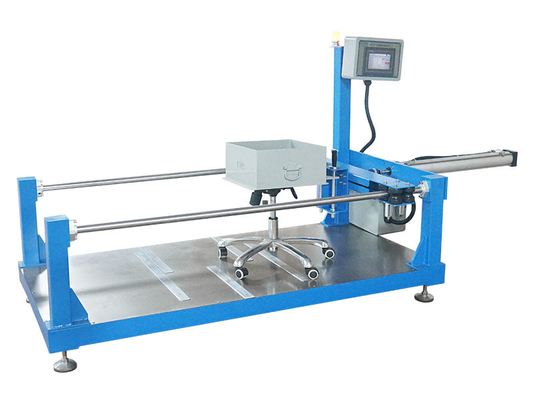

Sliding Resistant Furniture Testing Machines With 12mm Steel Plate For Rolling Office Chair
QB/T2280-2007 "office chair"
ANSI / BIFMA X5.1 "Office Chair General technical requirements"
EN1335: 2000 "Office Furniture - Office Chairs"
How it works:
The load placed on the horizontal work table chair, in a distance of 550mm to the speed of 50mm / s of the push or pull of not less than 550mm. 200mm away from the work surface at the level of force. Pushdown or recording the force required to pull the chair. Measuring the distance of 250mm ~ 500mm rolling / sliding resistance average.
The machine configuration:
The machine features:
12mm steel plate welded below the 100 GB channel, laying stainless steel top. Installation activities corners and locking casters.
Jumbo aluminum. Overall vertical solid and beautiful.
Touch screen + PLC + power sensor + specimen position sensor, the whole forming a closed-loop control. Loading speed can be adjusted. Easy installation
|Chair Caster Durability Tester|
|Design Criteria||Bifma x 5.1 clause 17|
|driving mode||variable frequency motor and timing belt|
|Strokee||762mm (+ 50mm)|
|Rate||8 ~ 12 times / min|
|Voltage||220V single-phase, 900W|
|control mode||PLCand LCDdisplay
Contact Person: salesmanager
Framework: 1 framework with traverse member and base plat 1200mm ×1200 mm , 12mm thick, galvanized steel
Rotation test axis: 1 electromotive test axis for the rotation of the turning knob, position-controlled, rotation angle +/- 360°
Pneumatic test axis: 1 pneumatic test axis for seat, load controlled, position diameter 80mm, stroke 500mm
Number and Cycles: Can be set by PLC ( 0- 99,999)
