50HZ Electric Rubber Testing Machine , Shoe Sole And Upper Peel Strength Testing Equipment

50HZ Electric Rubber Testing Machine , Shoe Sole And Upper Peel Strength Testing Equipment
50HZ Electric Rubber Testing Machine , Shoe Sole And Upper Peel Strength Testing Equipment

Large Image :  50HZ Electric Rubber Testing Machine , Shoe Sole And Upper Peel Strength Testing Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-P803

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electronic Warranty: 1 Year
Power Supply: 1 ∮ AC 220V, 50HZ (by Country Or Specified) Weight: 45kg
High Light:

rubber tensile testing machine

,

rubber hardness tester



50HZ Electric Rubber Testing Machine , Shoe Sole And Upper Peel Strength Testing Equipment



Introduction:

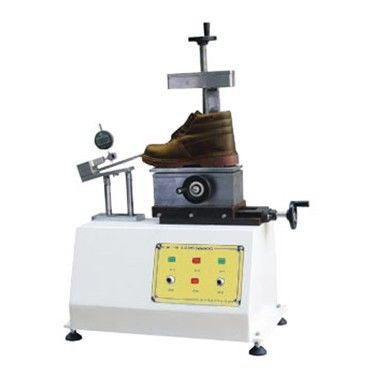

GB/T30903.3 Shoe sole and upper peel strength testing machine is suitable for checking into a shoe sole and upper peel strength between, the principle is fitted shoe shoes will become clamped in the machine to peel knife to peel the sole and upper junction, when measured peel is the force required to peel strength, peel strength and the edge according to the width of the peel strength is calculated.


According to the standard: GB/T30903.3



Specifications:



Blade width 20 ± 0.2mm and 10 ± 0.2 mm
Edge downlink speed 20 ± 2mm/min, rising and falling speed adjustable
Positioning rod and rod spacing 50 ~ 70 mm adjustable
Indicator 0.001 ~ 10 mm
Average Lifting range 40 mm
About the size 560 * 320 * 750 mm
Weight approx 45 kg
Power 1 ∮ AC 220V, 50HZ (by country or specified)
