BS-5131 Standard Shoe Heel Impact Fatigue Test Equipment

Name: BS-5131 Standard Shoe Heel Impact Fatigue Test Equipment
Brand: HAIDA
SKU: HD-P801
Rating: 4.9 (194 reviews)

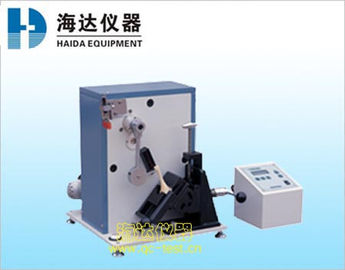

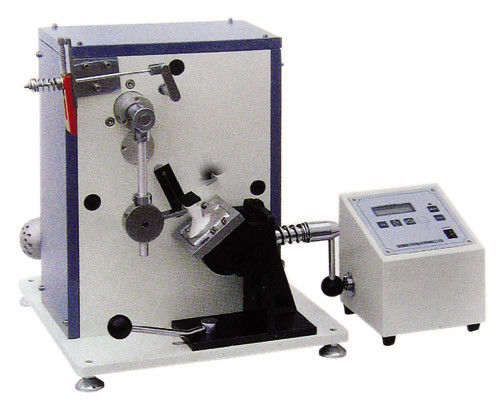

Large Image : BS-5131 Standard Shoe Heel Impact Fatigue Test Equipment

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-P801

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Power:

Electronic

Warranty:

1 Year

Power Supply:

1∮, AC220V, 3A

Weight:

Approx. 69kg

High Light:

rubber testing equipments

rubber hardness tester

BS-5131 Standard Shoe Heel Impact Fatigue Test Equipment

Product description:

shoe heel impact fatigue testing machine is used to test high-heeled shoes and middle heels’ continuous impact times, shoe heel impact fatigue testing machine’s blade strike the heel continuously under a certain energy and frequently. And to evaluate the quality of the shoe heel accordingly to the continuous bear index of it

Design standard: BS-5131

Main parameters:

Blow energy	0.68J/blow
Strike frequency	60blows/min
Swing arm	φ12.5mm
Punch hammer size	φ57mm,20mm(D)
Rush size	20×6×35mm,3mm(R)
Specimen’s holder adjust range	up and down~90mm(H),left and right~80mm(W)angle 0~180°
Counter	LCD,0~999,999
Dimension	main engine:(L×W×H) 50×45×50cm
Controller	(L×W×H) 18×21×20cm
Weight	approx. 69kg
Power	1∮, AC220V, 3A
