Digital Incline Package Impact Tester / Catron Impact Testing Equipment

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Digital Incline Package Impact Tester / Catron Impact Testing Equipment

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A523
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Impact Area (mm): 1600 X 2300mm Max. Slide Length (mm): 2000mm(adjustable)
Impact Velocity Range (m/s): 1.3~2.3m/s Impact Velocity Error: ≤±5%
Control System: PLC Control Scooter Table Size (mm): 1400x1200mm(customizable)
High Light:

packaging testing instruments


packaging drop test equipment

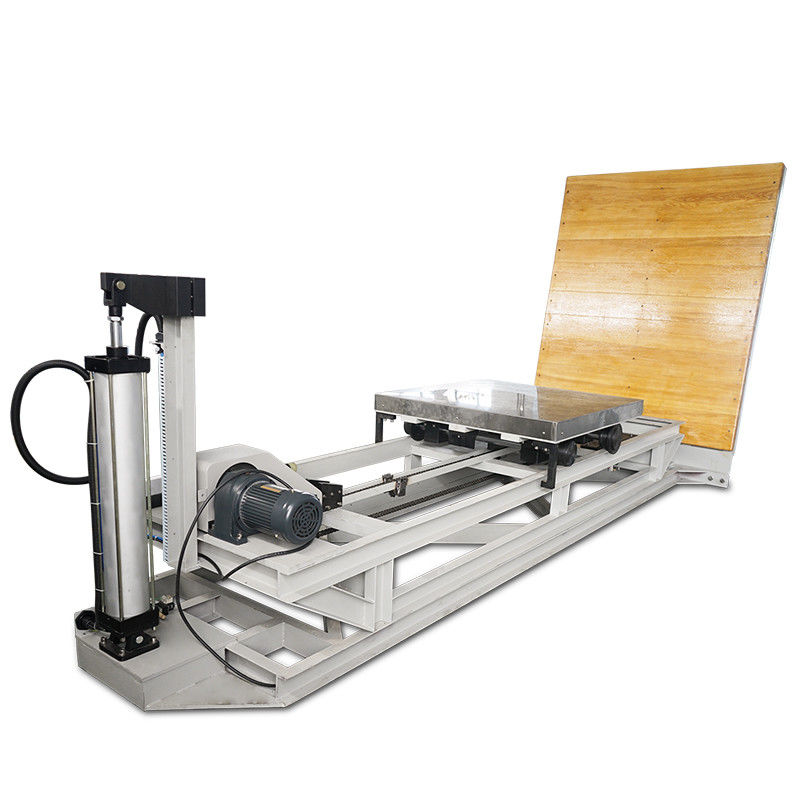

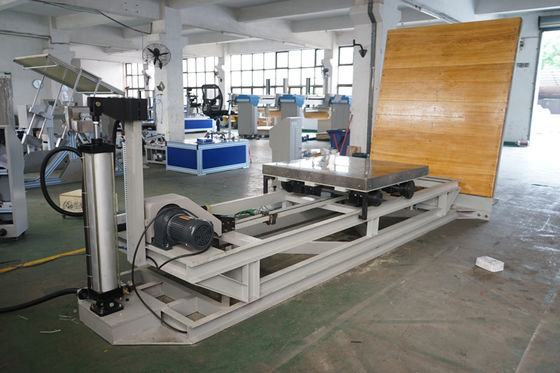

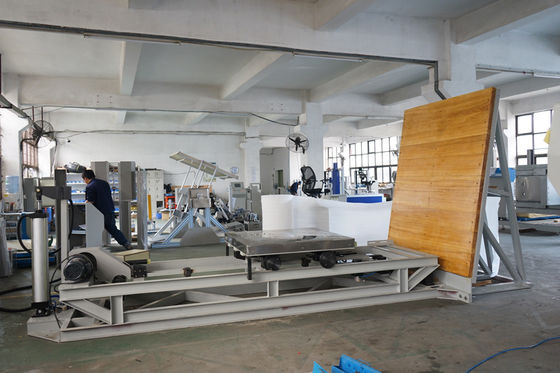

Digital Incline Package Impact Tester / Catron Impact Testing Equipment

Incline impact tester is simulated the impact strength of packaging in the real circumstance of transport. Slope impact test machine is apply to the pile up of goods, slide of electromechanical, loading of the engine, transportation of product. This product is also can supply as the test machine to scientific research institution, college, packaging technique test centre, packaging material manufacture and foreign trade or transport department.


Security marks:

There are some safety precaution and important notes when using the equipment, in order to prevent accidents and dangerous, please observe the following narration of danger .warning and note.

Safety features :

  • E-Stop
  • Over-load protection
  • Upper and lower limit switches
  • Load sensor with automatic retreat

Standard Specifications:

Item Specification
Appearance size 7000x2000x2300 (L × W × H) mm
Load 0 ~ 600KG;
Impact panel size 1600 x 2300mm
Maximum sliding length 2000mm (to agreed);
Impact speed range 1.3 ~ 2.3m / s
Impact speed error ≤ ± 5%;
Tread table size 1400x1200mm; (customizable)
Power supply voltage 380V, 50 / 60Hz;
Working environment temperature 23 ~ 40 ℃, humidity≤80% (no condensation);

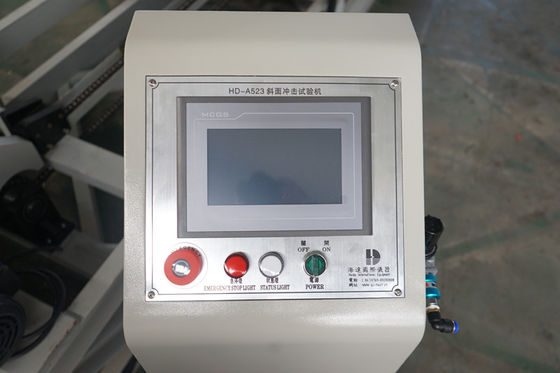

Control system PLC control.
Transmission mode pneumatic device + reducer + release
Customization can be customized according to customer's special index requirements

Design Standards:
ISTA 3E, 3J & ISTA 6 (inclined impact test)


What is ISTA?
ISTA stands for the “International Safe Transit Association”, a worldwide organization focused on developing standards, educational programs and tools for optimizing packaging solutions.

ISTA defines the testing protocols that must be performed to certify that different types of packaging can endure the foreseeable conditions they will encounter during transport. In so doing, ISTA has created a worldwide network of freight forwarders, shippers, manufacturers, test laboratories, and educational and research institutions to collaborate on maintaining, improving and updating protective packaging standards.

Why certify your packaging with ISTA?
The ISTA certification ensures:
Visible proof of conformity of your packaging to internationally accepted test protocols as evidenced by the ISTA seal;
Faster time-to-market for a competitive advantage, given the accelerating growth of e-commerce;
That your product will be able to withstand shocks, vibrations, compression and extreme weather conditions as required by your specifications;
Increased customer satisfaction by improving your company’s brand reputation.

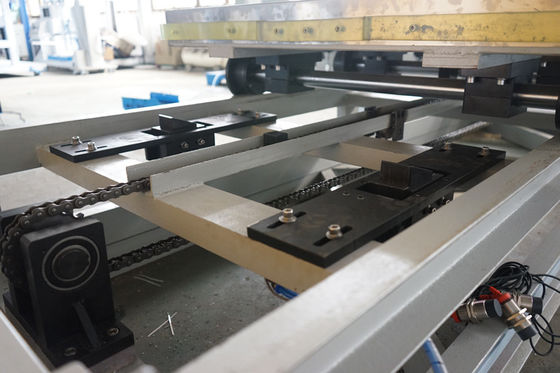

  1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
  2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
  3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
  4. In order to keep the test staff completely safe, the tester is with remote control function.
  5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.

Digital Incline Package Impact Tester / Catron Impact Testing Equipment 0
