TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine

Brand Name:	HAIDA
Model Number:	HD-A501-800
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC

Stroke (exclude The Grips):

400 Mm

Load Accuracy:

≤0.5%

Test Space (L×W×H):

800×1000×1000mm

Speed Of Compression:

10 ± 3 Mm/min

Operation Mode:

Weight:

Approx. 850kg

Supply Ability:

300 Sets per Month Haida

Highlight:

packaging testing instruments

packaging drop test equipment

Product Description

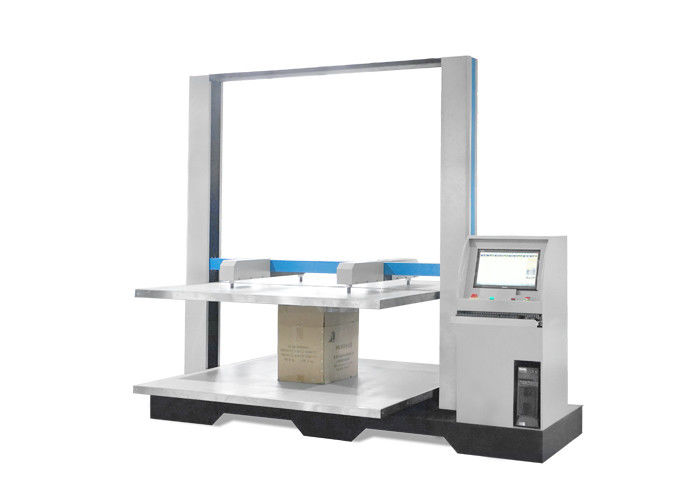

TAPPI-T804 Paper Testing Equipments , Carton Compression Testing Machine

Specifications
Carton Compression Testing Instrument
1.High quality
2.2 years warranty
3.Up to TAPPI-T804,
4.Reasonable price

1.About the machine:
TAPPI-T804 Paper Carton Compression Testing Equipments electronic test and measurement instrument is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.

2.Design criteria:

TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

3.Specifications:
TAPPI-T804 Paper Carton Compression Testing Equipments

Model	HD-A501-800
Unit (switchable)	Kg, Lb, N
Capacity (optional)	2T
Load Resolution	1/100,000
Stroke (exclude the grips)	400 mm
Load Accuracy	≤0.5%
Test Space (L×W×H)	800×1000×1000mm
Speed of Compression	10 ± 3 mm/min
Operation Mode	PC
Report Items	Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure	AC Frequency Conversion Motor ( Taiwan); Imported screw rod ;4 sensors; LED display
Dimension (L×W×H)	2370×1500×2100mm (can be custom made)
Power	1ø, 220v/ 50Hz
Weight	Approx. 850kg
Safety Devices	Overload protection, overvoltage protection & limited position protection device
Standard	TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

4.Features
Carton Compression Testing Instrument
1. TAPPI-T804 Paper Carton Compression Testing Equipments Using a single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine 0

The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
