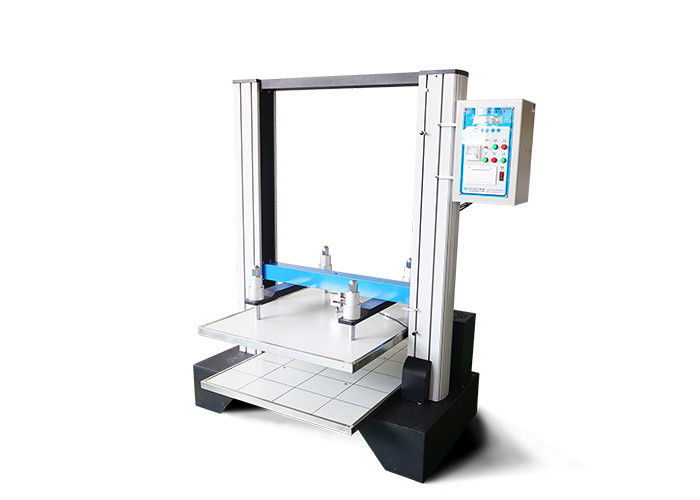

Microcomputer Corrugated Paper Testing Equipments Box Compression Strength Test Instrument

 Single-Screen Paper Testing Equipments , ASTM-D642 Paper Carton Compression Testing Instrument



Specifications
Carton Compression Testing Instrument
1.High quality
2.2 years warranty
3.Up to TAPPI-T804,
4.Reasonable price

1.About the machine:
Paper Carton Compression Testing Equipment is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

2.Design criteria:

TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

3.Specifications:
Carton Compression Testing Instrument


4.Features
Carton Compression Testing Instrument
1.Using a single-screen operation; do not need to switch the screen;
2.With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
3.Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4.The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5.Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6.With a variety of measurement units, Measure In Imperial & Metric are switchable;
7.With self-return & auto-correction function;
8.With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9.With the user-defined Test methods; with experimental data analysis function;
10.It can do test of compression, bending, pressure holding & fatigue.
11.With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.



The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
