Electronic Environmental Test Chambers , Anti-Yellowing Testing Chamber

Brand Name:	HAIDA
Model Number:	HD-E704
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

Electronic

Product Name:

Environmental Testing Chambers

Type:

Anti-yellowing Test Chamber

Application:

Testing Adaptability And Reliability

Controller:

Import FM Type Inverter

Power Supply:

220V, 15A

Supply Ability:

300 Sets per Month Haida

Highlight:

humidity temperature test chamber

environmental testing machine

Product Description

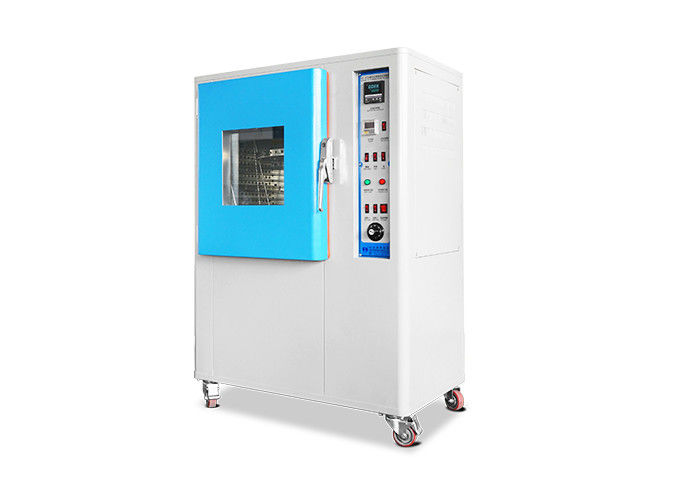

Electronic Environmental Test Chambers , Anti-Yellowing Testing Chamber

Application:

anti-yellowing test chamber is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.

Feature:

1, Studio equipped with lighting equipment

2.The machine can do two tests: anti-yellowing and aging.

The main technical parameters:

Item	Specification
Internal chamber size(WHD)	50x60x50cm
External chamber size(WHD)	93x131x57cm
Temperature Range	Ambient Temperature~200℃
Control Mode	Automatic Calculation Controller
Temperature display accuracy	0.1℃
Control accuracy	±3℃
Distribution accuracy	±0.1℃ (ambient ~ 100℃)
Time memory	0-999 hours, Power Failure Memory Type, with Buzzer
Sample holder rotation speed	Diameter 45cm, 10±2 roll/min
UV light source	300W UV lamp
Standard Accessories	Sample shelf x 2pcs
Heating method	Hot air circulation
Security devices	Over-temperature power-off indicator light; Safety overload switch ammeter
Chamber material	Internal: Stainless Steel SUS304; External: Steel plate with baking varnish
Accessory	1 x English operation manual, 1 x Operation video CD
Weight	140kg

Meet standard:

GB/T16585-1996
