PID Self-Tuning Environmental Test Chambers , Temperature Control Mode Xenon Testing Machine

Brand Name: HAIDA
Model Number: HD-E711
MOQ: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE,SMC, CMC, CPA, CE,CMA,IMC
Power:
Electronic
Product Name:
Environmental Testing Chambers
Type:
Xenon Testing Machine
Dimension:
1300 × 1500 × 1900mm
Temperature Range:
RT +10 ℃ ~ 70 ℃
Humidity Range:
90 ~ 98% RH
Supply Ability:
300 Sets per Month Haida
Highlight:

environmental testing equipment

,

humidity temperature test chamber

Product Description

PID Self-Tuning Environmental Test Chambers , Temperature Control Mode Xenon Testing Machine





The usage

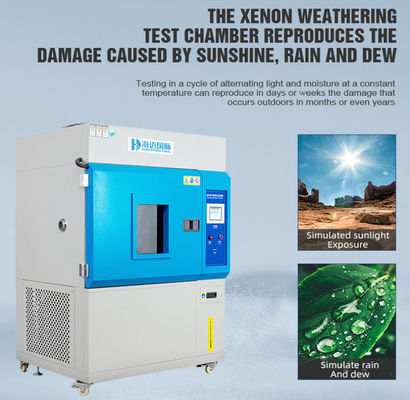

Xenon testing machine is to test the product undergone illumination / rain / condensation / temperature / humidity / wind and any other climatic changes. This aging tester mainly for the test of non-ferrous / organic / rubber / plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.





Specifications:



Studio Size:  950 * 950 * 800mm
Dimensions:  1300 × 1500 × 1900mm
Temperature range:  RT +10 ℃ ~ 70 ℃
Humidity range:  90 ~ 98% RH
Temperature uniformity:  ± 2 ℃
Temperature fluctuation:  ± 0.5 ℃
Temperature control:  PID self-tuning temperature control mode
Light center distance:  70mm
Samples with light center distance:  50mm
Standard Specimen size:  75 × 150 mm or 75 × 300 mm
Sink Depth Requirements:  25mm, automatic control
Effective radiation area:  900 × 210 mm
UV wavelength:  UV-A wavelength range of 315-400nm; UV-B wavelength range of 280-315nm
Test time:  0 ~ 999H, adjustable, UV Gel time alternately adjustable
Blackboard Temperature:  40 ℃ ~ 65 ℃
Power supply:  3 ∮, AC380V/50HZ, 5KW
Weight (approximately):  about 110kg
Standard Size:  (inner carton) 600 * 600 * 600mm 500 * 600 * 600mm 700 * 700 * 70mm 800 * 800 * 800mm

PID Self-Tuning Environmental Test Chambers , Temperature Control Mode Xenon Testing Machine 0PID Self-Tuning Environmental Test Chambers , Temperature Control Mode Xenon Testing Machine 1
