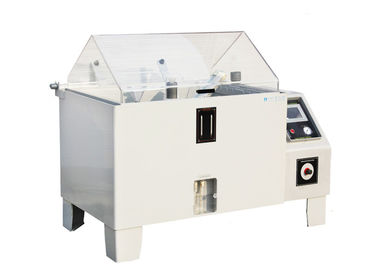

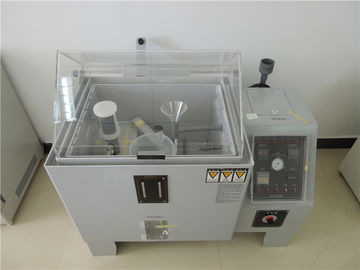

Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal

Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal
Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal

Large Image :  Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E808-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electronic|AC220V,10A Product Name: Environmental Testing Chambers
Type: Salt Spray Corrosion Testing Chamber Temperature Range: 35°C~55°C
Inner Box Size (W×H×D): 90x50x60 Cm Outside Box Size(W×H×D): 140x128x88 Cm
High Light:

humidity temperature test chamber

,

environmental testing machine



Corrosion-Resistanct Pvc Rigid Plastic Board Salt Spray Testing Chamber Of Metal





Product Description



Salt spray corrosion testing chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.



Applicable Standards:

ASTM B117, ASTM G85, ASTM D1141-98

DIN EN ISO 9227 (NSS, ESS, CASS)

DIN 50942, DIN 53 167

ASTM B 117-73, ASTM B 287-74, ASTM B 368-68

DIN EN 60068-2-11

BS 1224, BS 2011, BS3900 F4, BS 3900 F12, BS 5466 Part 1, BS 5466 Parts 2+3

NFX 41002

AS 21331 Section 3.1

SIS 1841190

JIS Z 2371



Features:

1. Provides USB Host for USB flash drive

2. Touch-screen operator control interface.

3. ‘Easy Open’ pneumatically operated canopy.

4. Dry seal gasket prevents wetting operator’s clothes, etc.

5. Low loading threshold for loading and unloading.

6. Large capacity floor standing salt solution reservoir.

7. Calibration certificate.

8. Canopy color choice.

9. Set of sample racks.

10.The TEMI880 touch screen can switch between Chinese and English.



Main Technical Parameter:



Model HD-E808-90
Internal Size (W*D*H) 900*600*500mm
External Size (W*D*H) 1410*880*1280mm
Equipment Material P.V.C rigid plastic plate, thickness 8mm
Sample tray

Diameter 10mm glass fiber rod, anti-rust

V-shape plastic steel to make sure sample in 15~30 degree inclined

Temperature Range Room temperature ~ 55℃
Temperature Fluctuations ≤±0.5℃
Temperature Uniformity ≤±2℃
Temperature Precision ±1℃

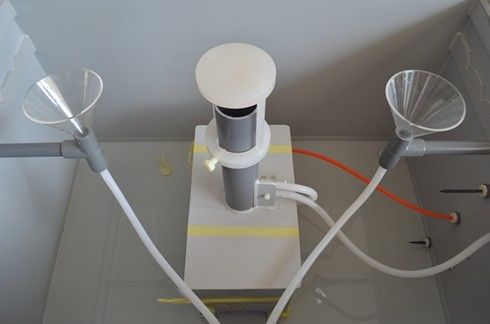

Spraying method Continuous and Periodic spray type
Test Chamber Temperature Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature 35℃±1℃
Spray Quantity 1.0~2.0 ml / 80cm2 / hr
PH value Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume 270L
Brine Tank Capacity 25L
Multiple Safety Protection Devices Current discharge protection, over pressure protection, over temperature protection, over load fuse protection

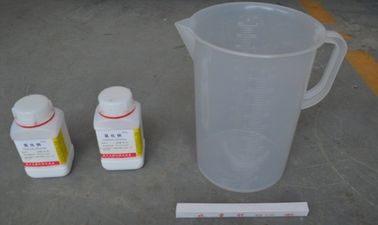

Accessories Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source Air pump (provided by buyer)

(The table parameters for the company Standard Model parameters, we support customer customization parameters)
