Product Details:
Payment & Shipping Terms:
|
| Max Stroke: | 650mm | Test Spee: | 20-300mm/min |
|---|---|---|---|
| Cylinder Stroke: | 0-300mm | Power: | Electronic |
| Product Name: | Furniture Testing Equipment | Type: | Universal Materials Tensile Strength Testing Equipments |
| High Light: | fatigue testing equipment,impact testing machine |
||

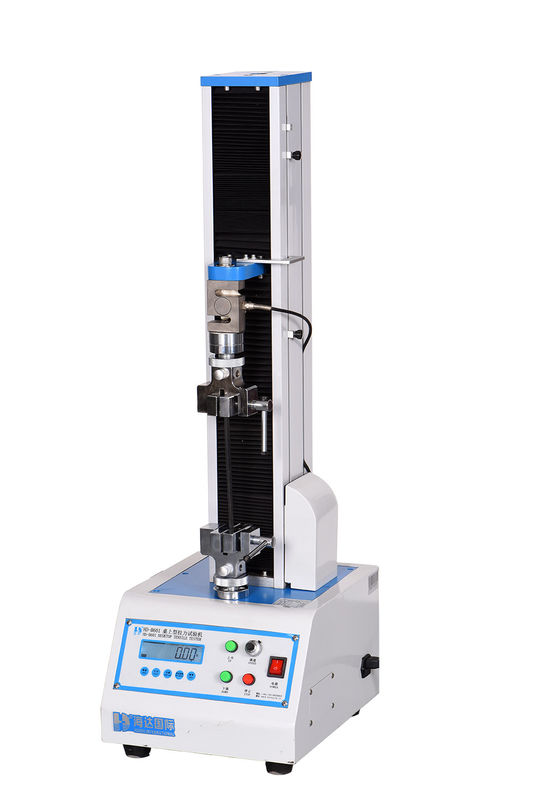

Universal Materials Furniture Testing Machines , Tensile Strength Testing Equipments
Universal Materials Tensile Strength Testing Equipments is designed and manufactured according to GB 17200, and its every capability conforms to relative test standards such as ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113.IntroductionIt
Main Technical Parameter
|
Items |
Specification |
|
Sensor |
LOAD CELL |
|
Capacity |
2kg,50kg (Push-pull gauge optional) |
|
Unit switchover |
kg, N |
|
Display device |
Pointer type & LCD display |
|
Resolution |
1/10,000 |
|
Accuracy |
±1% |
|
Max. stroke |
650mm (include the fixture) |
|
Test speed |
20-300mm/min (adjusted by the knob ) |
|
power |
1∮,AC220V 50HZ |
|
Weight |
Approx.30kg |
|
Accessories |
One set tensile clamp, one piece English software CD, one piece operation video CD, one piece English user manual |
Product Features
| 1. Motor system | AC motor +Driver +High precise ball screw (Taiwan) |
| 2. Control system | Microcomputer |
| 3. Displacement resolution | 0.001mm |
Applications:
1. Deformation under defined load: Test deformation under defined load of tested sample
2. Load under defined deformation: Test load under defined deformation of tested sample
3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
4.1. Tensile Test
2. Compression Test
3. Peel Test
4. Bend Test
5. Tear Test
6. Shear Test
7. and customizable test properties
Universal Materials Tensile Strength Testing Equipments is with build-in printer, can print the testing date, time, maximum, average
