Furniture Testing Machines BIFMA X 5.1 , Chair Arm And Leg Cyclic Durability Tester

Brand Name:	HAIDA
Model Number:	HD-F735
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

The Engine Power:

200W

The Power Supply:

AC /220V, 5A, 50HZ

Test Times:

1-999999 Times (arbitrary Setting)

Test Chair Arm Height:

(500~750mm)

The Machine Size:

LxWxH=2400x1000x1950 Mm

Control Mode:

PLC Control

Air Supply:

≥0.6kgf/cm²

Sensor:

200KG(four In Total)

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

impact testing machine

Product Description

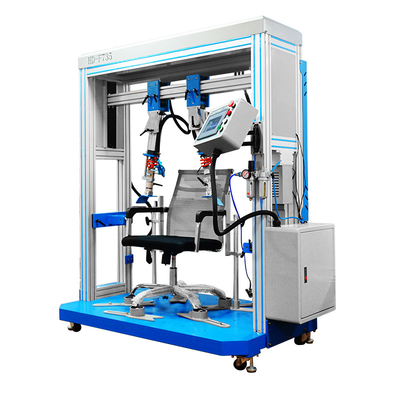

Furniture Testing Machines BIFMA X 5.1 , Chair Arm And Leg Cyclic Durability Tester

PRODUCTS DESCRIPTION:

The use of the Chair Arm and Leg Tester to evaluate the ability of the chair to withstand stresses that occur as a result of repetitive loading that can be imposed on the armrest structure. Loading of this type is the result of using the armrests as a support when getting into or out of the chair.

Furniture Testing Machines BIFMA X 5.1 , Chair Arm And Leg Cyclic Durability Tester 0

GENERL SPECIFICATIONS

Packaging Dimensions: (W*D*H)1840*1400*2210mm;5.68cbm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight:480kg

HS Code: 9024800000

DESIGN STANDARD:

BIFMAX5.1:EN 1728

STANDARD FEATURES

Item	Description
Sensor	200KG(four in total)
Testing Speed	10-30 times/min
Display mode	touch screen display
Control mode	PLC control
Control pressure mode	servo proportional valve control
Test chair arm height	(500~750mm)
Test times	1-999999 times (arbitrary setting)
The power supply	AC /220V, 5A, 50HZ
Air Supply	≥0.6kgf/cm²
The engine power	200W
The machine size	LxWxH=2400x1000x1950 mm

APPLICATIONS

1. The controller adopts test software independently developed by the company, which can realize automatic shutdown of preset test times;

2. With emergency shutdown protection function, simple operation, reliable and stable operation;

3. With stop/power memory function, equipment short circuit protection function and other design, to ensure the safety of users.
