Chair Ipomoea Base Vertical Force Testing Machine For Vertical Pressure Testing

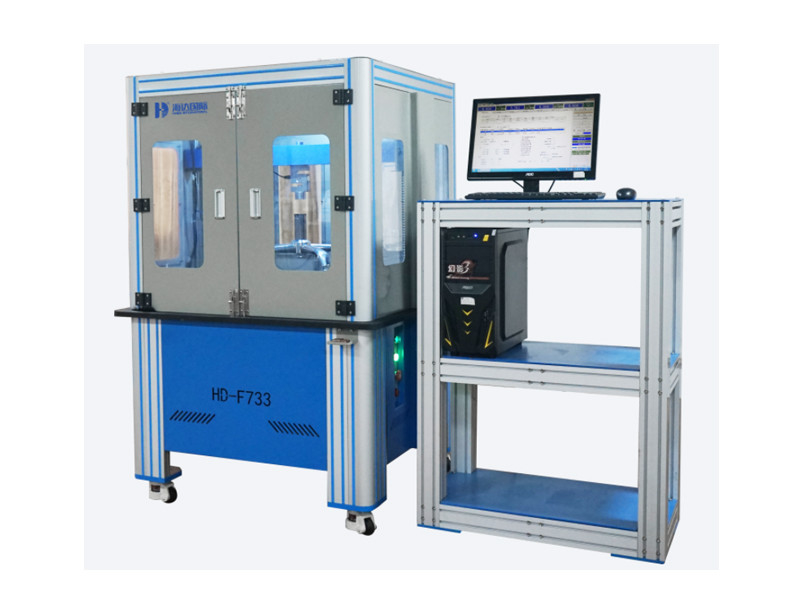

Large Image : Chair Ipomoea Base Vertical Force Testing Machine For Vertical Pressure Testing

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-F733-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Control Method:	Computer Software Control	Standard:	Bifma 5.1-Appendix C
Power:	Electronic	Product Name:	Furniture Testing Equipment
Usage:	Office Chair	Type:	Vertical Force Testing Machine
Highlight:	furniture testing equipment , impact testing machine

Chair Ipomoea Base Vertical Force Testing Machine For Vertical Pressure Testing

Chair Ipomoea Base Vertical Force Testing Machine For Vertical Pressure Testing 0 Chair Test Machine Video

Main Parameters:

Item	Specification
Test standard	Bifma 5.1-Appendix C
Force sensor	2000KG
Test speed	5 ～ 250 mm / min
Display mode	computer display
Control method	computer software control
Record	The peak value of the machine's force value is displayed, and the maximum damage value can be recorded
Power supply	AC / 220V, 10A, 50HZ
Overall power	0.6KW
Machine size	(L x W x H) 1100x1100x1650 mm
Maximum test sample	width 800mm
Configuration function	The whole machine has an abnormal alarm function
Main accessories	6 height blocks for chair feet, 1 base block, 1 auxiliary fixture.

Introduction

Chair Ipomoea Base Vertical Force Testing Machine used for the vertical pressure testing, destructive testing and fatigue testing use of the office chair Ipomoea base (Star Base) repeated pressure loading in setting force test cycle, as the fatigue test. Pressure on the size of the holding pressure time and cycle number of tests can be adjusted.

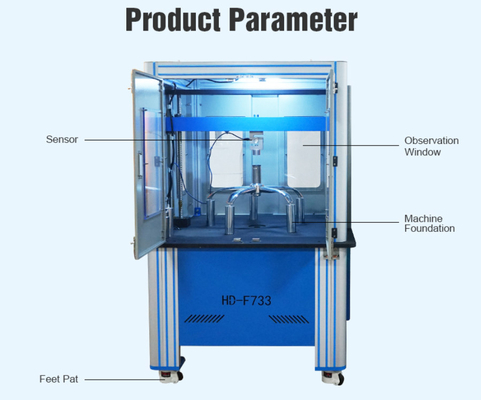

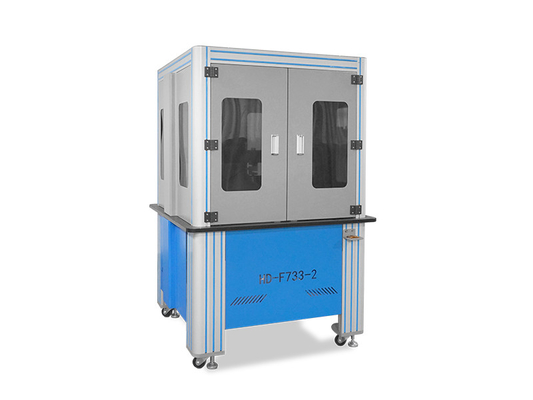

Chair Ipomoea Base Vertical Force Testing Machine For Vertical Pressure Testing 1
