Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic|AC 220V, 50Hz | Product Name: | Furniture Testing Equipment |
|---|---|---|---|
| Type: | Chair Universal Test Machine | Back Load: | 5～100kg |
| Machine Size: | 1700x1450x2100mm（L*W*H） | ||
| High Light: | furniture testing equipment,impact testing machine |
||

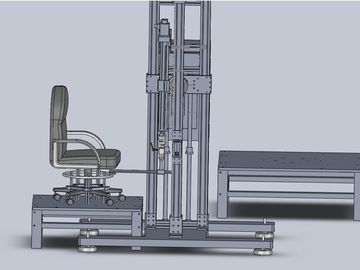

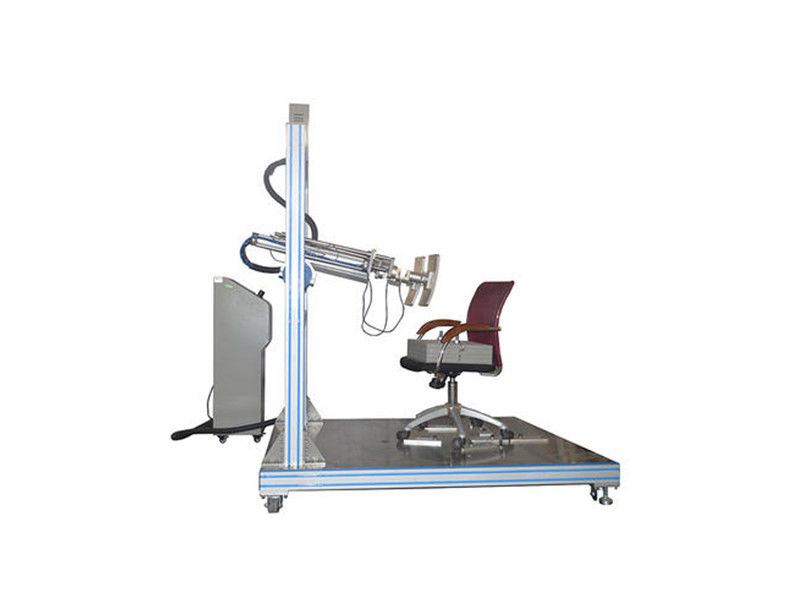

Electric Universal Test Machine , Chairs Comprehensive Testing Equipment
MAIN FUNCTION:
The machine is designed to test back by specified load block with setting force and speed, to assess chair back durability.
GENERAL SPECIFICATION:
Packaging Dimensions: (W*D*H) 1700*1450*2200mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: About 500kg
HS Code: 9024800000
TEST STANDARD:BIFMA X5.1 2017
STANDARD FEATURES:
| Force actuator height | 500-1200 mm(adjustable) |
| Test cycle | 0～999,999 (adjustable) |
| Test speed | 0～30 time /min |
| Back load | 5～100kg |
| Air requirement | Compressed air 6 kg/cm2 |
| Holding and cyclic time | 0～99S |
| Control model | PLC, Programmable controller |
| Power | One phase, AC 220V, 50Hz. |
| Display | Touch screen |
| Machine size | 1700x1450x2100mm(L*W*H) |
APPLICATION:
Test Times in 1 ~ 999999 times can be set arbitrarily, automatically stop after reaching the determination number;
Touch screen +PLC control, test force, test times and other data can be set;
Travel limit protection, leakage protection design, to ensure safe operation;
With power off memory and power off protection alarm and other functions, the next power use, you can view the last test data or continue to test.
QUALITY GUARANTEE
A) Quality assurance items
The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)
1. During the guarantee period, TEST shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;
2. If any quality problems occurs within the guarantee period, and TEST must provide on-site service, the transport and travel expense shall be borne by customer;
3. If any big quality problems occurs out of the guarantee period, TEST will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;
4. TEST will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;
B) The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
① please keep the guarantee letter, if you lost it, please connect with us in a month.
② If the guarantee letter has been altered or it has no our stamp, it is useless.
C) The following conditions need to be paid reasonably even in the assurance period:
① Natural reasons
② Operating mistakes
③ Voltage is not fit for our operation instruction
④ Repack it without our guides
⑤ Damaged for borrowing to others
⑥ Damaged for authorized machine modification
⑦ Damaged for authorized calibration
⑧ Authorized transshipment mistake
⑨ Serve for long distance area
D) Attentions
① Any service outside Guangdong, China , transport and travel fees shall be paid by customer.
② The apparatus try not to be used in the following situations:
a. Vibration, rocking the occasion.
b. Direct sunlight.
c. Hot, dusty, damp places.
d. To ensure safe, AC supply of the machine should be well grounded.
e. Do not use strong solvents (such as: benzene, nitro oil) washing machine.
f. Do not inject water and debris into the machine; prevent damage to electrical components and electrical shock.
g. Instrument displays the disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
