Vertical Pressure Furniture Testing Machines , Chair Base Testing Machine

Brand Name:	HAIDA
Model Number:	HD-F733
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

Electronic

Product Name:

Furniture Testing Equipment

Use:

Vertical Pressure Testing, Destructive Testing And Fatigue Testing

Type:

Chair Base Testing Machine

Capacity:

2000kg

Stroke Resolution:

0.001 Mm

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

impact testing machine

Product Description

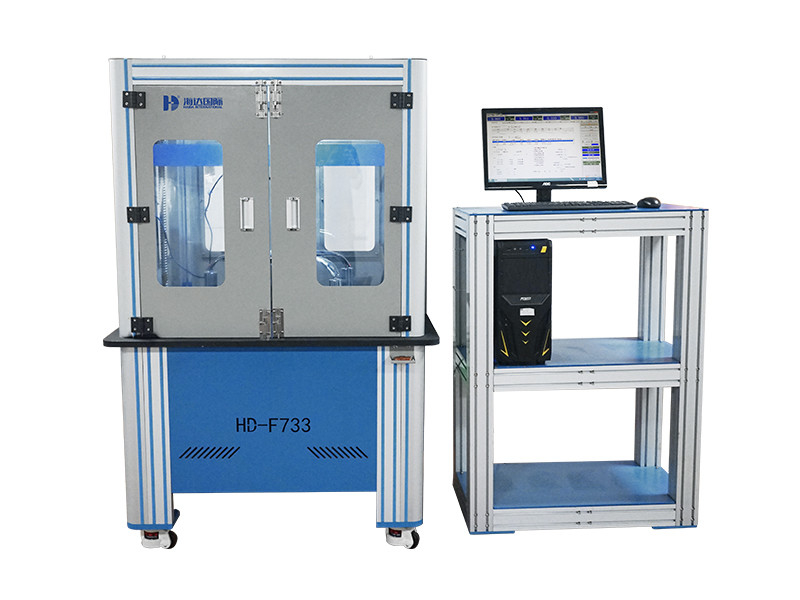

Vertical Pressure Furniture Testing Machines , Chair Base Testing Machine

Main Function:

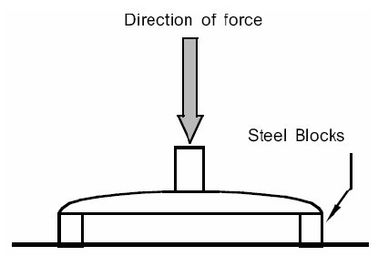

Chair Base Testing Machine is used for the vertical pressure testing, destructive testing and fatigue testing of the office chair Ipomoea base (Star Base), repeated pressure loading in setting force and test cycle as the fatigue test. All holding pressure time and cycle number of tests can be adjusted.

Vertical Pressure Furniture Testing Machines , Chair Base Testing Machine 0

Technical Parameter:

1. Capacity	2000kg (Transcell senor )
2. Unit switch	gf,kgf, N, LBf, W, KN, T
3. Load resolution	1/250,000
4. Load accuracy	within ±0.5%
5. Max stroke	1000mm including grip
6. Max sample width	1000mm
7. Test speed	(0.01-100)mm/min (computer input)
8. Drive device	imported servo motor
9. Stroke resolution	0.001 mm
10. Weight	452kg
11. Power	1 phase, AC 220V, 10A
12. It has iron mesh and shatterproof film protective cover to prevent debris pop-up specimen during testing.
13. Accessories	one computer with operation software.

Design Standard: BIFMA X5.1-2011 7

Computer Operation:

1. With “Windows” work platform, all parameters set by dialog, easy to operate;

2. Software language all in English;

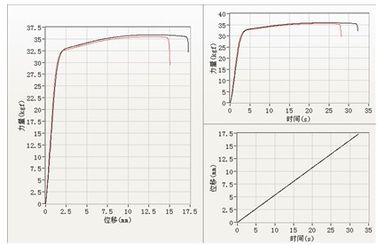

3. Edit the test reports by yourself, all test parameters in main interface; Can choose time and elongation, elongation and force and others curve;

4. With variety unit, metric system can switch;

5. With automatic back and calibration function; with magnification function to reach suitable graph;

6. Test speed can settable by customer;

7. With define test method, all test parameters can analysis automatically;

8. Get the test reports automatic and print out in A4 paper, also with curve or save in Word format.
