| Control Method: | Computer Control | Power: | Electronic |
|---|---|---|---|
| Product Name: | Furniture Testing Equipment | Standard: | GB/T10807-2006 |
| Capacity: | 200kg-2000kg | Type: | Foam Indentation Force Deflection Testing Maichines |
| High Light: | furniture testing equipment,fatigue testing equipment |
||

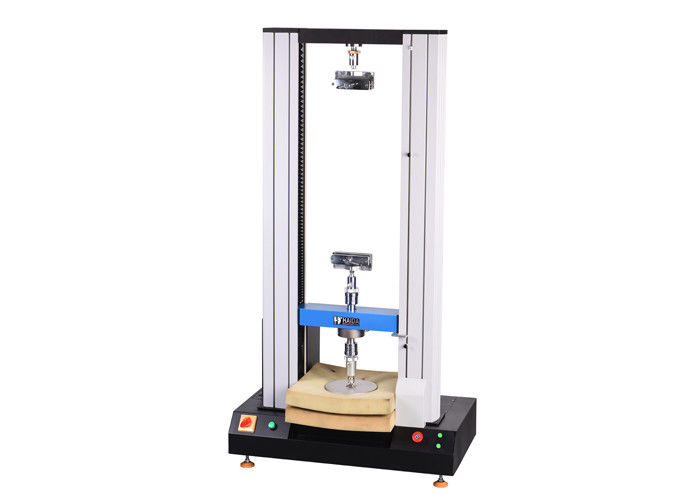

Single-Phase Furniture Testing Machines , Foam Indentation Force Deflection IFD Tester
Foam Indentation Force Deflection Testing Machine Description:
Foam Indentation Force Deflection Testing Machine is also known as sponge, foam indentation hardness testing machine, tensile metallic and non-metallic, polymer materials, compression, bending, detection of low cycle fatigue and other projects can be according to customer product requirements according to GB, ISO, ASTM, JIS, EN and other standards for the preparation, to automatically strike the biggest test, fracture strength, yield strength, tensile strength, compressive strength, flexural strength, elastic modulus, elongation , constant elongation stress, elongation and other parameters given stress.
Measurement principle:
The sample is placed between the upper and lower platen, the pressure plate at a predetermined speed compression specimens down to a certain size when national standards concavity A method (B method, C Act) as required, on which the load cell to sense the pressure back to the computer processing and display, so the measured pressure sponge, foam and other materials such as depression sample hardness.
Technical parameters:
| Item | Parameter |
| Capacity | Sensor 100KG-2T |
| Motor | Panasonic 400W servo motor |
| Drive | 400w servo drive |
| Screw | Imported ball screw |
| Control mode | Computer control, windows mode operation |
| Speed | Speed adjustable (computer adjusted) 0.1-500mm / min |
| Maximum stroke | 1200mm (including fixture) |
| Span | ≤400mm |
| Load resolution | 1 / 250,000 |
| Load accuracy | ≤0.5% |
| Unit switching | gf / kgf / N // kN / LBf / W / T |
| Dimensions | (L * W * H) 880 * 510 * 1490mm; |
| Weight | about 150Kg |
| Power supply | 1∮, AC 220V |
| Configuration | (Pull-up) Fixture is standard according to customer's sample, (Down-pressure) includes 200mm diameter pressure plate and 380mmX380mm tray with holes |
Design Standards:
GB/T10807-2006
