Product Details:
Payment & Shipping Terms:
|
| Port: | ShenZhen | Power: | Electric |
|---|---|---|---|
| Power Supply: | 1 ∮, AC220V, 8A | ||
| High Light: | rubber tensile testing machine,rubber testing equipments |
||

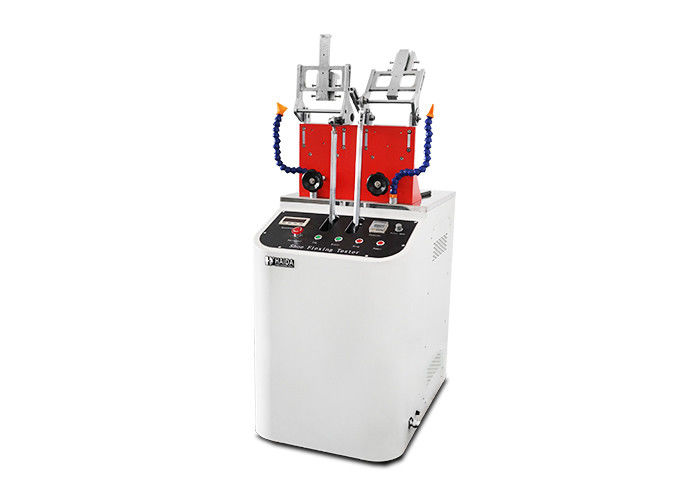

Electronic Rubber Testing Machine , Shoe Soles Flexing Testing Equipment
Product Description:
The whole shoe folding test machine for testing and shoe soles (film) at room temperature folding properties.
How it works:
whole shoe / shoe soles (film) flexing testing machine become shoes or soles mounted on folding test machine, at an angle to a certain frequency march torsion testing, measuring soles and confining of a certain number of times Flexing crack (mouth) and a plastic length, and observe the upper changes.
Design Standard:
GB / T 3903.1-2008 Footwear General test methods folding performance
Specifications:
| Fixture | 2 groups |
| Bending angle | 50 ° ± 1 ° (0 ° ~ 5 °) adjustable |
| Test speed | 230 ± 10r/min (adjustable) |
| Motor | 3-phase, 220V, AC 2KW |
| Volume (approximately) | Host 75 × 75 × 110cm |
| Control box | 32 × 32 × 106cm |
| Weight (approximately) | 180kg |
| Power | 1 ∮, AC220V, 8A |
| Standard configuration | Host a test machine; |
| Cutter | 1 |
