Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Port: | ShenZhen |
|---|---|---|---|
| Power Supply: | 1, AC220V/50Hz | Load: | 250g, 500g, 750g |
| Abrasion Wheel: | 2"(max.45mm), 1/2"(W) | Rotating Speed: | 60/72 Rpm |
| Highlight: | rubber tensile testing machine,rubber hardness tester |
||

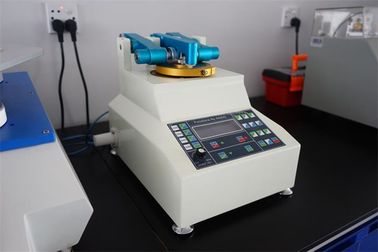

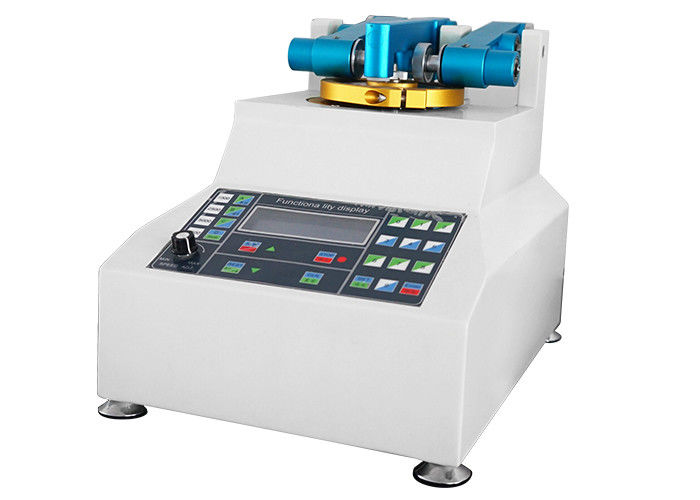

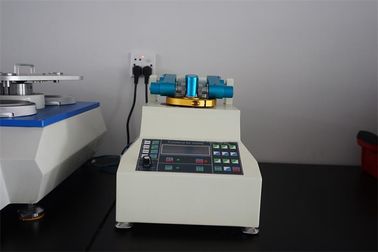

High Sensitivity Rubber Testing Machine , Taber Electronic Rubber Abrasion Tester
Specifications:
Abrasion Tester
1.Professional design
2.High quality with reasonable price
3.Good after-sale service
Product description:
Taber Abrasion Tester. To determine the wear resistance of all kinds of structures including fabrics, leather and rubber, paper, metals, paints, plated surfaces, coated materials, glass etc.
Taber Abrasion Tester (Taber Abraser) uses the X pattern of abrasion produced by a rotary action of a pair of abrasive wheels. Taber abraser supplies with a full range of auxiliary Weights, specimen holders, abrasive wheels, wheel refacer and vacuum unit.
The main technical parameters:
Taber electronic rubber abrasion testing machine
|
Specimen Size: |
ED:108mm ID:8mm ,3mm |
|
Abrasion Wheel: |
2"(max.45mm), 1/2"(W) |
|
Wheel Center Distance: |
63.5mm |
|
Rotating Speed: |
60/72 rpm |
|
Load: |
250g, 500g, 750g |
|
Counter: |
LCD Touch screen, 0-999,999 Automatic shutdown |
|
Wheel and Specimens disk center space: |
37~38mm |
|
Machine Size: |
(L*W*H)530*320*310mm + vacuum cleaner |
|
Weight: |
18kg (Excluding vacuum cleaner) |
|
Power: |
1, AC220V/50Hz |
|
Wear index calculation formula: |
Abrasion loss weight/test turnover number×1000 |
|
Design criteria: |
DIN-53754, 53799,53109,52347, TAPPI-T476, ASTM-D1044,D3884, ISO-5470 |
|
Specimen Size: |
ED:108mm ID:8mm ,3mm |
|
Abrasion Wheel: |
2"(max.45mm), 1/2"(W) |
|
Wheel Center Distance: |
63.5mm |
Accessories:
-One vacuum cleaner machine
-One H10 wheel
-One box of abrasive papers for recondition the wheel
- Load 250,500 and 1000g
