Digital Height Indicator Paper and Paperboard Testing Equipments Drop Testing Machine Device

Brand Name:	HAIDA
Model Number:	HD-A520-1
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Drop Height:

400~1500 Mm

Single-wing Area (W×L):

350×760 Mm

Drop Panel Area (W×L):

1200×1400 Mm

Specimen Max. Weight:

60 Kg

Transmit Approach:

Electric Transmission

Power:

1ø, AC220V/ 50Hz

Supply Ability:

300 Sets per Month Haida

Highlight:

paper testing instruments

paper testing machine

Product Description

Digital Height Indicator Paper and Paperboard Testing Equipments Drop Testing Machine Device

Specifications
Drop Testing Machine
1.High quality,with reasonable price
2.High accuracy and high precision
3.Great after-sales service

Drop Testing Machine Device
1.The usage
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this device simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.

2.Specifications

HD-A520-1
Display Method	Digital height indicator (optional)
Drop Height	400~1500 mm
Single-wing Area (W×L)	350×760 mm
Drop Panel Area (W×L)	1200×1400 mm
Specimen Max. Size (L×W×H)	1000×1000×800 mm
Specimen Max. Weight	60 Kg
Outside Dimension (L×W×H)	1400×1200×2200 mm
Control Box Size (L×W×H)	350×350×1100 mm
Weight	400 Kg
Power	1ø, AC220V/ 50Hz
Transmit Approach	Electric Transmission
Horsepower	1/2 HP
Design Criteria	ISO 2248, JIS Z0202-87, GB/T4857.5-92

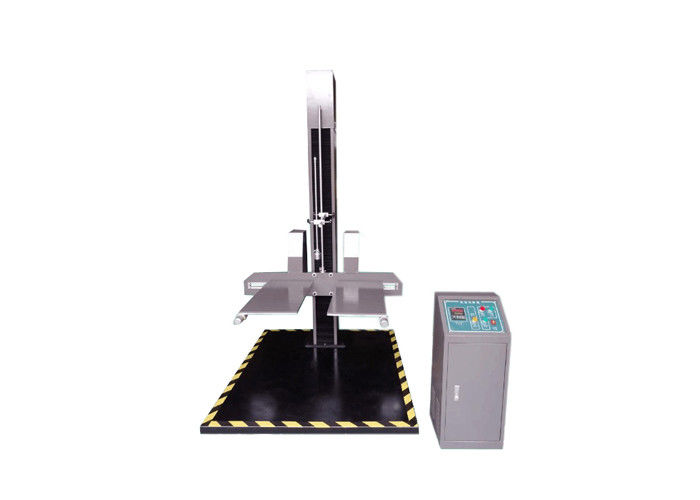

Digital Height Indicator Paper and Paperboard Testing Equipments Drop Testing Machine Device 1
