High Accuracy Rubber Testing Machine , Handheld Compact Spectrodensitometer

Brand Name:	HAIDA
Model Number:	HD-X004-1
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

Electric

Port:

ShenZhen

Weight:

1050 Grams (2.3 Pounds)

Charging Time:

About 3hours

Supply Ability:

300 Sets per Month Haida

Highlight:

rubber tensile testing machine

rubber testing equipments

Product Description

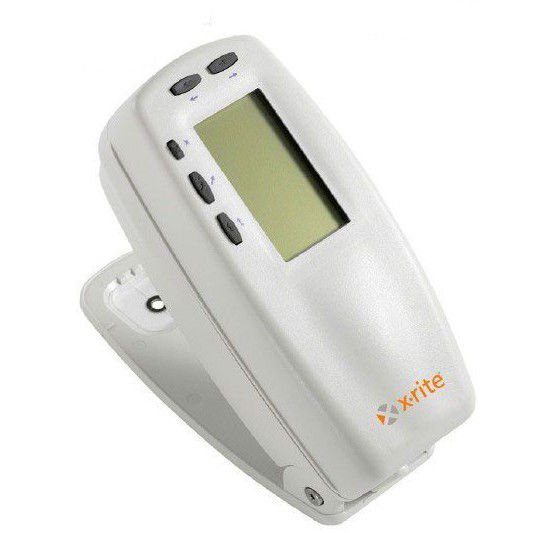

High Accuracy Rubber Testing Machine , Handheld Compact Spectrodensitometer

Production:

HD-X004-1Prepress and pressroom densitometer to accurately measure the density, dot area and dot gain

Brand: X-Rite X-Rite

Features: Suitable for plate-making industry and the use of various types of printing, from prepress to help implement comprehensive color control workshop

Industry and the use of various types of printing plate

Increase the color stability and improve print quality

Spectral measurement sensor technology

Large screen full Chinese display

Simple calibration instructions, sturdy shell to prevent collisions

five models were used to measure the density, density difference, dot size, dot gain, trapping, print contrast, hue error, gray, L * a * b * and L * c * h *, etc., the color comparison, the paper side color and brightness.

Scanning densitometer / spectrometer system

Instant printing production process provides an important information to help reduce makeready time and loss.

Technical parameters

Measuring geometry 45 ° / 0 ° meet ANSI, DIN & ISO Standards
Measuring 6.0mm diameter 3.4mm optional micro pore 1.6mmx3.2mm
Inflatable incandescent light pulse, color temperature 2856 °
Spectral range	400-700nm
Standard illuminant	A, C, D50, D55, D65, D75, F2, F7, F11, F12
Standard viewing angle	CIE 2 ° and 10 °
Response mode	T, E, I, A, G, Tx, Ex, Hi-Fi
Measuring range	density 0.00D-2.50D reflectivity 0-160%
Measuring time single measurement	about 1.4 seconds, fast read mode in about 0.9 seconds continuous measurement
Warm-up time	required
Repeat Performance	+/- 0.005D 0.00-2.00D; +/- 0.010D 2.00-2.50D
Inter-instrument	0.01D or 1% less than traditional printing 0.40ΔEcmc measuring 12

BCRAII Series Swatches

Data storage over 1400 samples (528 and 530)

RS-232 data interface

Rechargeable nickel-hydride rechargeable battery source 4.8V @ 1250mAH

Charging time is about 3 hours use of the environment

Weight 1050 grams (2.3 pounds)
