Brand Name:	HAIDA
Model Number:	HD-C525
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC

Power:

Electric

Port:

ShenZhen

Angle:

0°~45°adjustable

Testing Angle:

20°,30°,40°

Supply Ability:

300 Sets per Month Haida

Highlight:

rubber testing equipments

rubber hardness tester

Product Description

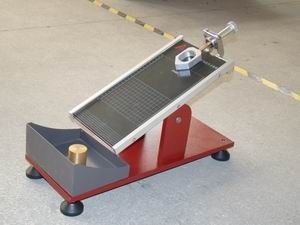

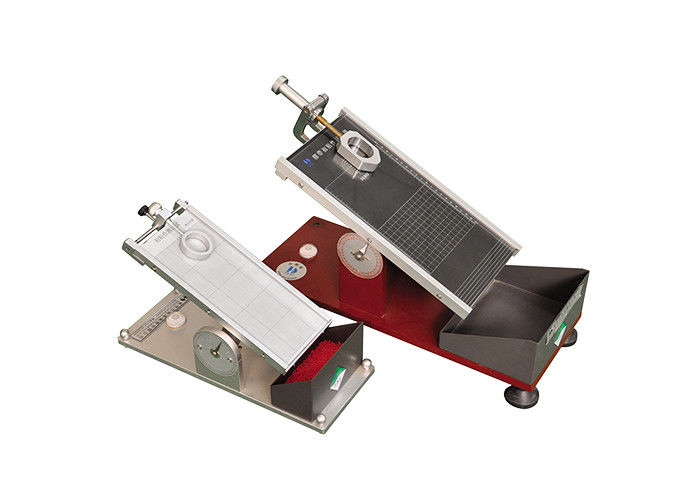

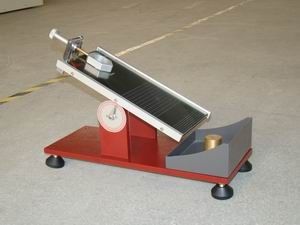

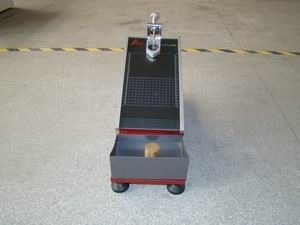

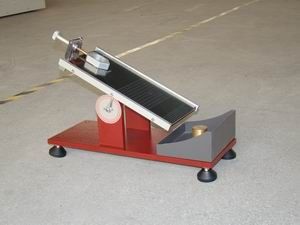

GB/T 4852 Rubber Testing Machine , Electric Tape Initial Adhesion Testing Equipment

Specifications

GB/T 4852 Tape Initial Adhesion Testing Machine is used to test adhensive strength of tape and judge the initial adhension.

1.Function

GB/T 4852 Tape Initial Adhesion Testing Machine is used to test the initial adhesion of pressure sensitive tape and the like. It’s easy to operate and with high practicability.

2. Theory

Let the steel ball roll over the tape placed on the leaning surface, valuate its initial adhesion according to the size of the maximum ball that the given tape length can stick.

3. Testing criteria: GB/T 4852,JIS Z0237

4. Technical Parameter

Angle	0°~45°adjustable
Testing angle	20°,30°,40°
Sample size	width(10-80)mm,length is more than 250mm,number of sample is no less than 4 pieces
Size of the ball	diameter 1/32”-1” in wooden box
Leaning panel	5mm thickness glass
Primary runway	(L)100mm
Outer dimension	(L×W×H) 500×200×300 mm
Weight	8kg

5. The certification

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
