Product Details:
Payment & Shipping Terms:
|
| Humiture Range: | (RT+10)~70C; 30~98%RH | Inner Box Size: | 950x950x900mm |
|---|---|---|---|
| Power: | Electronic | Product Name: | Xenon Test Chamber |
| Rainfall Time: | 1~9999min, Adjustable | Model: | HD-E711 |
| High Light: | accelerated aging chamber,aging test machine |
||

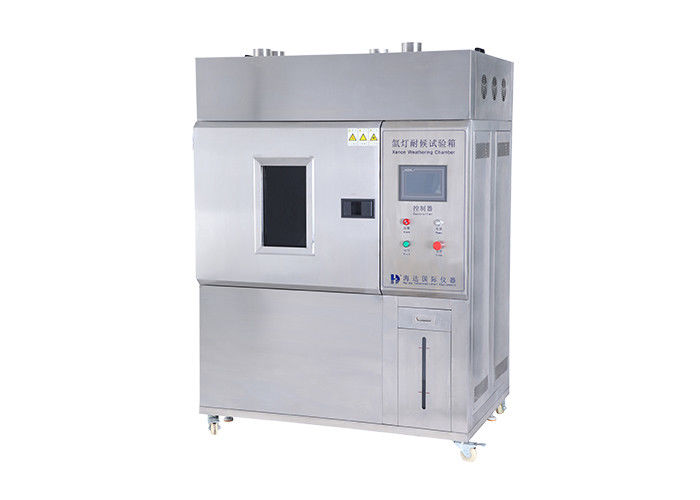

Moeller Programmable Controller Q-Sun Xenon Test Chamber With High Pressure
Application:
Moeller Programmable Controller q-Sun Xenon Testing Chamber is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;
Features:
1. Advanced design technology and concept
2. Excellent technology of producing and outstanding system of quality management,
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet, visible and infrared.
4. A full range of spectrum, necessary for most textile sun and color fastness test.
|
Model |
HD-E711 |
|
Inner Box Size (L*D*H) |
750mm*500mm*600mm |
|
Outside Dimension (L*D*H) |
1350mm*1200mm*1750mm |
|
Humiture Range |
normal temperature ~80℃; light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable |
|
Temperature uniformity |
≤±2.0℃; 3%RH |
|
Rainfall time |
1~9999min, adjustable |
|
Rainfall cycle |
1~240min, interval is adjustable |
|
Xenon lamp light |
imported air-cooled xenon arc light sourc ,2.5kw, xenon lamp power: 2.5kw ×3 = 5.4kw, life 1200 hours |
|
Heating/humidifying power |
4.5KW/3KW |
|
Sample spinning machine speed |
1~5r/ min (adjustable) |
|
Sample and xenon lamp distance |
250 ~ 300mm |
|
Box material |
Stainless Steel SUS304# |
|
Insulation materials |
Superfine heat insulation cotton |
|
Insulation body |
Superfine glass fabric |
|
Circulation system |
Single cycle, centrifugal fan |
|
Control system |
Germany KLOCKNER-MOELLER progammable controler |
|
Gas processing |
dischager for fector and harmful gas |
|
Power |
AC380V, three phase |
|
Use environment |
5C~+30℃, 85%R.H |
|
Standard features |
1. Filtering screen viewing window; 2.Moistureproof lamp |
|
Security Protection |
Security device for circuit break, |
|
high pressure of the compressure, high temperature alarm |
