UV Accelerated Weathering Tester , Stainless Steel UV Light Testing Equipment
1. Product description
UV Accelerated Weathering Testing Machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
2. Technical parameters:
UV Accelerated Weathering Testing Machine
|
Studio Size |
400W×1140D×380Hmm |
|
Outside dimension |
500W×1300D×1460Hmm |
|
Materials |
Inside and Outside SUS#304 stainless steel |
|
Temperature range |
RT+10~70°C |
|
Temperature uniformity |
±2°C |
|
Temperature fluctuation |
±0.5°C |
|
Temperature control |
PID SSR control,PID self - tuning temperature control mode |
|
Humidity range: |
about 45%~70% R.H. |
|
Controller |
Korean TEMI 880 programmable controller |
|
Control mode |
Balance temperature humidity control (BTHC) |
|
Test cycle setting |
Illumination, condensation and water spray test cycle is programmable |
|
Lamp power |
40W/Piece |
|
Distance from sample to lamp |
50±2mm (adjustable) |
|
Centre distance between the lamp |
70mm |
|
Irradiance |
1.0W/cm2 |
|
Wavelength ultraviolet light |
UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime) |
|
Effective irradiation areas |
640×1140mm |
|
Irradiation black panel temperature |
30°C~80°C |
|
Standard Specimen Size |
75×150mm (special specitications to be described in the contact) |
|
Required water depth for water channel |
50mm, automatically control |
|
Testing time |
0~999H, adjustable |
|
Power |
220V/50Hz /±10% 5KW |
|
Protection system |
Overload short circuit protection, over temperature protection, water lackin |

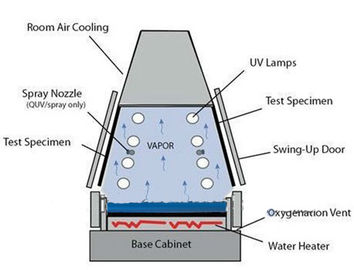

3. Chamber Structure:
UV Accelerated Weathering Testing Machine
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
4. Control System:
Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.
5. Test Specimen Mounting:
UV Accelerated Weathering Testing Machine
The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, UV Accelerated Weathering Testing Machine is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.
6. Design criteria:
PID SSR Control UV Accelerated Weathering Testing Machine
(1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings
(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)
(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance
(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics
(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics
(8) IEC 61345: UV Test for Photovaltalic (PV) Modules

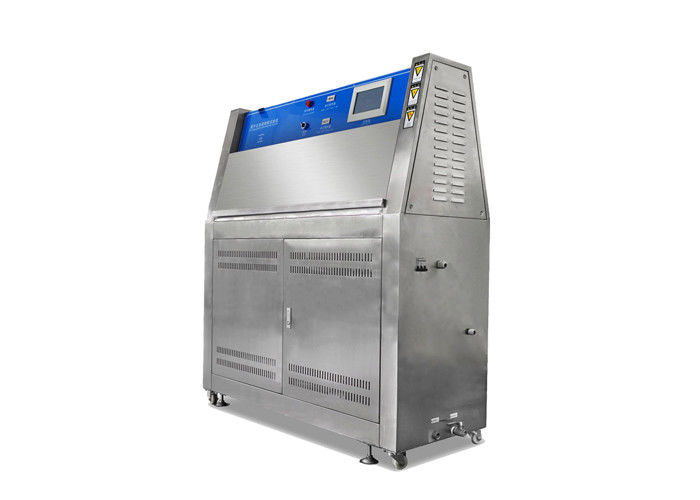

7. Poduct image:
Product structure:
UV Accelerated Weathering Tester_pdf.pdf
