Brand Name:	HAIDA

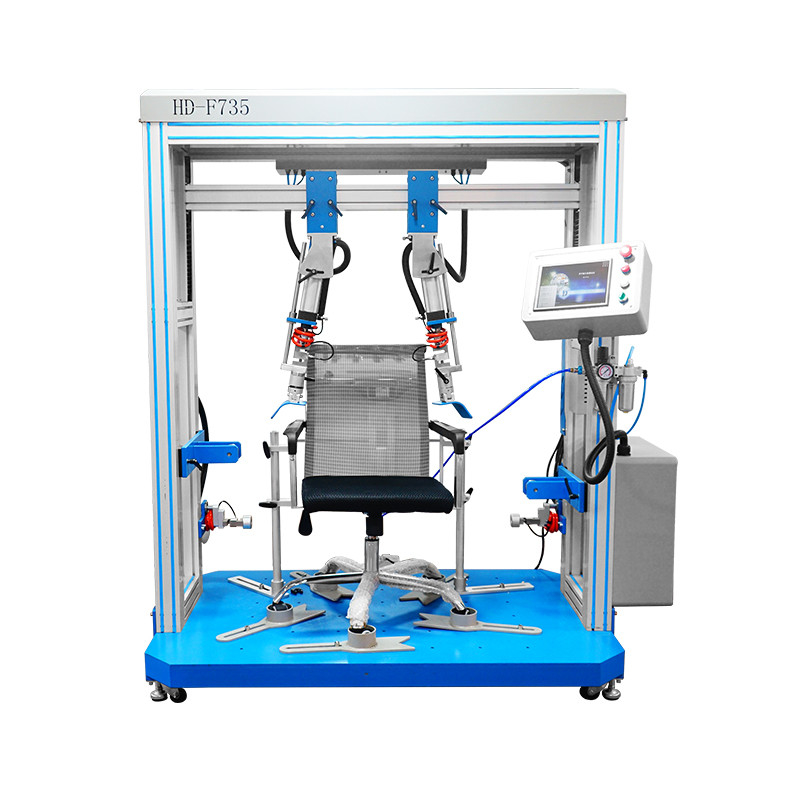

Model Number:	HD-F735
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Control Mode:

PLC Control

Display Mode:

Touch Screen Display

Test Chair Arm Height:

(500~750mm)

The Power Supply:

AC /220V, 5A, 50HZ

The Engine Power:

200W

The Machine Size:

LxWxH=2400x1000x1950 Mm

Supply Ability:

300 Sets per Month Haida

Highlight:

fatigue testing equipment

impact testing machine

Product Description

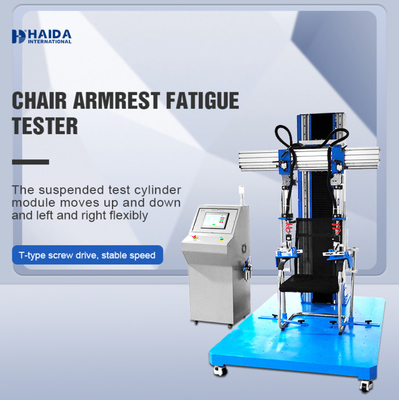

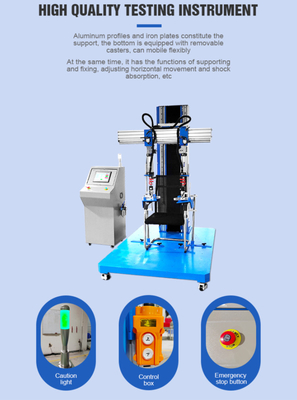

High Standard Furniture Testing Machines , Chair Durability Furniture Tester

APPLICATIONS

1. The controller adopts test software independently developed by the company, which can realize automatic shutdown of preset test times;

2. With emergency shutdown protection function, simple operation, reliable and stable operation;

3. With stop/power memory function, equipment short circuit protection function and other design, to ensure the safety of users.

DESIGN STANDARD:

BIFMAX5.1:EN 1728

STANDARD FEATURES

Item	Description
Sensor	200KG(four in total)
Testing Speed	10-30 times/min
Display mode	touch screen display
Control mode	PLC control
Control pressure mode	servo proportional valve control
Test chair arm height	(500~750mm)
Test times	:1-999999 times (arbitrary setting)
The power supply	AC /220V, 5A, 50HZ
Air Supply	≥0.6kgf/cm²
The engine power	200W
The machine size	LxWxH=2400x1000x1950 mm

CONFIGURATION:

Configuration	Name	Details
Items	Documents	Certificate of quality1 piece; Accessories list1 piece; Instruction Book*1piece;
	Force sensor	2kN2,1kN1
	Power line	1 piece
	Air pipe	Φ 8 tracheal * 1
	Fixture	Armrest fixture *2 sets (American standard)
		φ203 fixture *2 sets
		side limit fixture *2 sets
		caster anti-rotation fixture *5 sets
		chair foot strength test fixture *1 set
		armrest horizontal static load test fixture *2 sets
Optional	Air compressor (table)	It is recommended to buy more than 3p
Optional	Fixture	Armrest fixture(European standard)； armrest fixture(national standard)； φ100 fixture
