Product Details:
Payment & Shipping Terms:
|
| Cylinder Stroke: | 300mm | Machine Size: | 1200mm×1450mm×2600mm(L*W*H) |
|---|---|---|---|
| Power: | 1∮ AC 220V | Test Degree: | 1～999999 |
| Impact Speed: | 10～30times/min | Drop Weight: | 57kg、102kg、136kg |
| High Light: | furniture testing equipment,fatigue testing equipment |
||

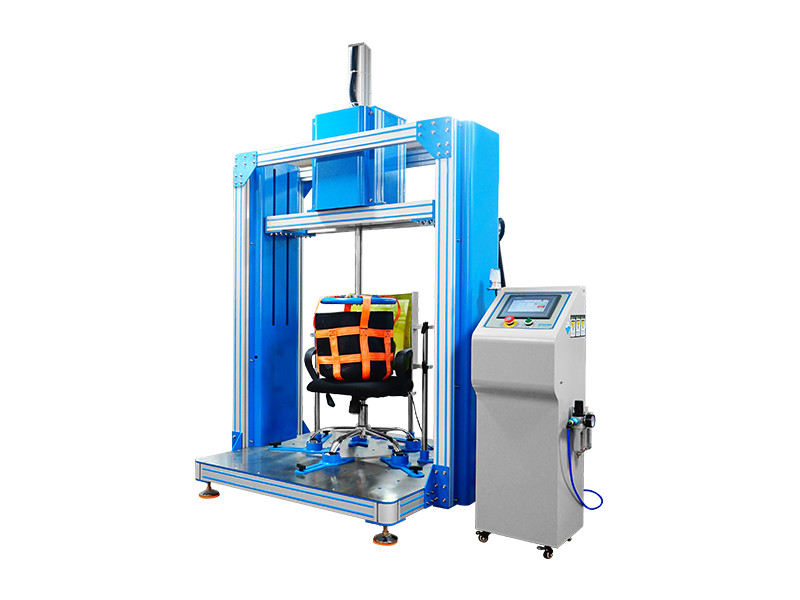

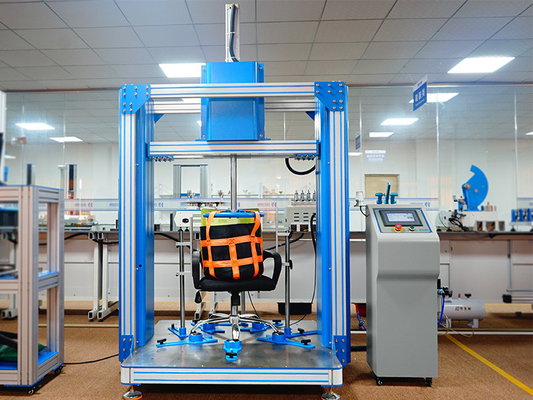

Universal Chair Drop Furniture Teste Machine, High Capacity for Chair Durability Test
EQUIPMENT DESCRIPTION
Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat. It can also to evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.
GENERL SPECIFICATIONS
DESIGN STANDARD: Bifma x5.1-2017
TECHNICAL PARAMETERS
| Control Mode | PLC Control |
| Display Mode | Touch Screen |
| Cylinder Stroke | 300mm |
| Impact Speed | 10～30times/min |
| Seat Height | 200mm～600mm(adjustable) |
| Drop Weight | 57kg,102kg,136kg |
| Drop Height | 30mm,36mm,152mm |
| Test Degree | 1～999999 |
| Weight | About 500kg |
| Power Supply | 1∮ AC 220V |
| Rate of Work | About 200W |
| Data Output | USB |
| Maximum external dimension | 1200mm×1450mm×2600mm(L*W*H) |
| Main testing item | one impact and impact durability test |
CONFIGURATION:
| Configuration | Name | Details |
|
Standard Configuration |
Documents | Operation Manual*1 piece |
| Factory Inspection Report*1 piece | ||
| Operation Video in USB flash disk with machine*1 piece | ||
| Power line | 1 piece | |
| Air Pipe | 1 piece | |
| Weight Bag | woven bag*1 piece | |
| Small steel ball bag | 10kg *12 pieces +5kg*3 pieces + 1kg *2 pieces | |

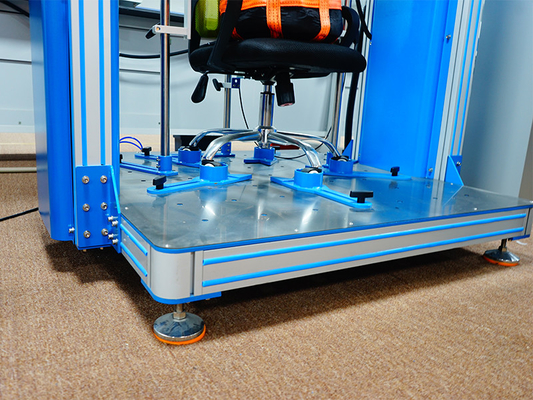

| Testing Clamp | Chair Fixing Seat for chair foot *5 pieces; | |
| Sample damage fixture*1 piece; | ||
| Limit clamp*2 piece | ||
| Fixed height block | 152mm*1piece ；36mm*1 piece；30mm*1 piece | |
|
Optional Configuration |
air compressor | Suggest ≥ 3P |
| Plug | 1 piece(Per customer country’s standard) |
