Cornell Mattress Spring Fatigue Testing Machine ,Furniture Mattress Durability Tester

Brand Name:	HAIDA
Model Number:	HD-F764
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

380V, 5kw

Product Name:

Furniture Testing Equipment

Type:

Fatigue Testing Equipment

Rack:

Aluminum Body And Steel

Control Elements:

Imported

Service:

OEM

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

impact testing machine

Product Description

Cornell Mattress Spring Fatigue Testing Machine ,Furniture Mattress Durability Tester

Test Standards: EN 1957

The Usage:

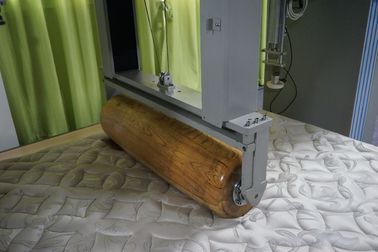

OEM Cornell Mattress Spring Furniture Fatigue Testing Equipment Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress , simulate human motion to assess the durability of the mattress.

Function and Features:

Item	Specification
Applicable mattress	maximum size 2.2m X 2 m
Controller	Mitsubishi PLC + color touch screen + data output function
Roller type	Hexagonal roller
Roller type	Round roller
Test stroke	1) ASTM 1566: Max. Mattress width, Min. 70% of mattress width or 38in (965mm) whichever is smaller
	2) BS EN 1957: 250mm on the left and right of the mattress centerline
	3) GB / T 26706: 250mm on the left and right of the midline
	4) QB / T 1952.2: 250mm on the left and right of the mattress centerline
Test speed	0-20r / min
Transmission device	high-precision servo system
High loss test	high precision servo measurement system

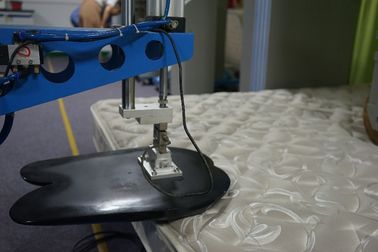

Mattress edge	a, test times: 5000 times;
	b, pressure holding time: 3 seconds;
	c, test force value: 1000N
Power supply	3∮, AC380V, 5kW
Design standards	ASTM F1566-2009, EN1957, GB / T 26706-2011, QB / T 1952.2-2011

The Main Components:

1. Motor: Taiwan's Teco Motor with reducer of Italy

2. Speed adjustment: Taiwan's "Ed Force" drive

3. Guide bearing: Import from Japan.

4. Rack: aluminum body and steel

5. Control elements: Imported.

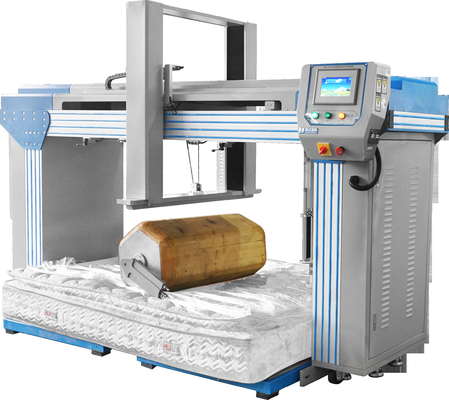

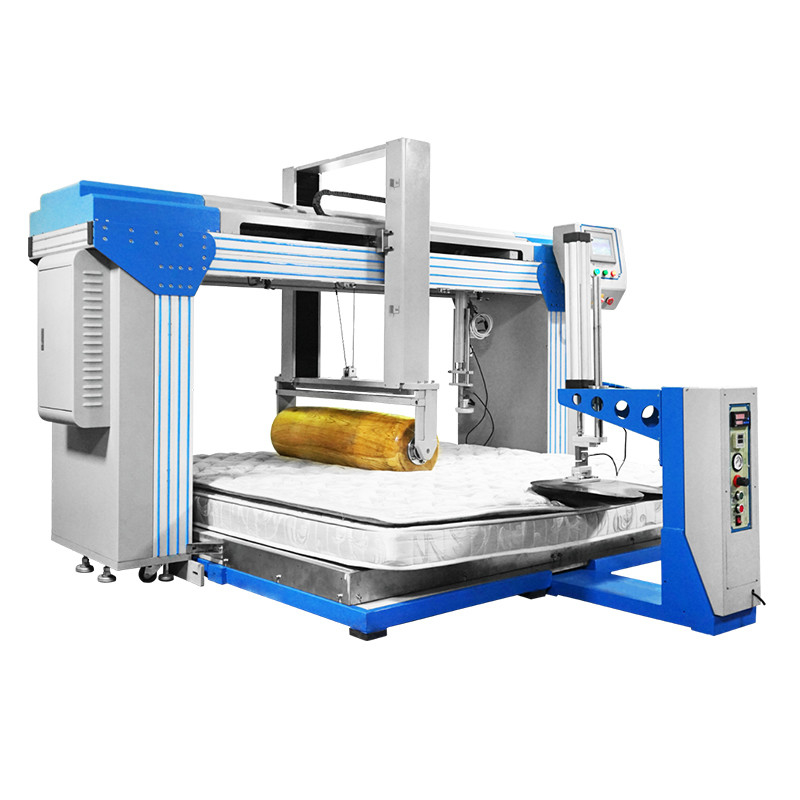

The Pictures:

Cornell Mattress Spring Fatigue Testing Machine ,Furniture Mattress Durability Tester 0

Different Model of The Machine

Mattress Durability tester:

Mattress Firmness Tester:

ABOUT HAIDA

Cornell Mattress Spring Fatigue Testing Machine ,Furniture Mattress Durability Tester 3

Cornell Mattress Spring Fatigue Testing Machine ,Furniture Mattress Durability Tester 4

Cornell Mattress Spring Fatigue Testing Machine ,Furniture Mattress Durability Tester 5

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
