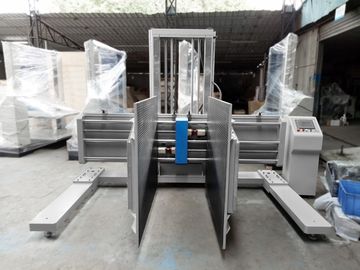

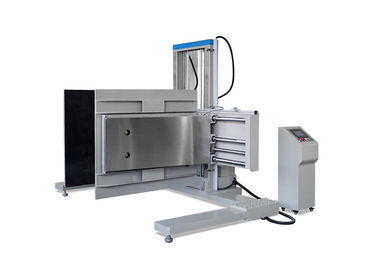

ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester

ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester
ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester

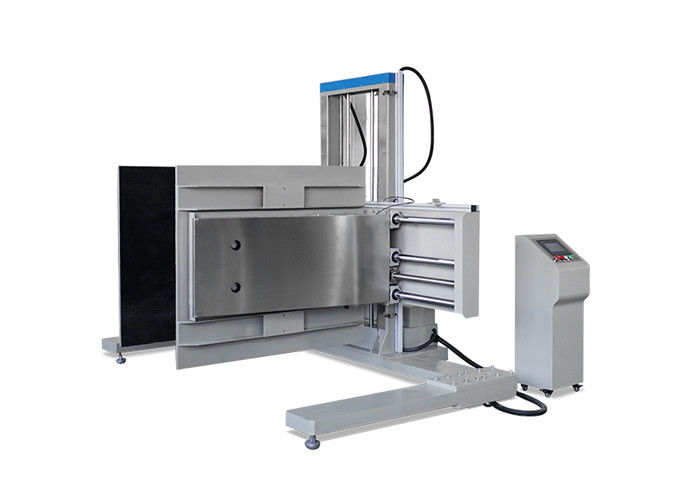

Large Image :  ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A534
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Clamping Force: 1T Color: Optional
Resolution: 1/100,000 Test Space(L X W X H): 100x 100 X 100cm
Test Speed: 10±3mm/min Weight: Around 300kg
Power: 1#, 220V/50HZ
Highlight:

packaging testing instruments

,

paper and packaging material testing instruments

ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester



The  Parameters



Clamping force

1T

color

optional

Resolution

1/100,000

Test Space(L x W x H)

100x 100 x 100cm

Test Speed

10±3mm/min

Weight

 around 300kg

Power

1#, 220V/50HZ



Specifications



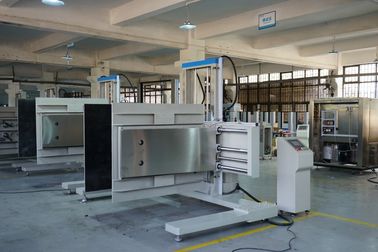

ASTM D6055 PLC Control Package Clamping Compression Testing Machine
1.Package clamp testing machine
2.Up to ASTM D6055
3.PLC control


Safety protection



Overload protection, overvoltage protection & limited position protection device



Clamp Compression Testing Method of Large Products



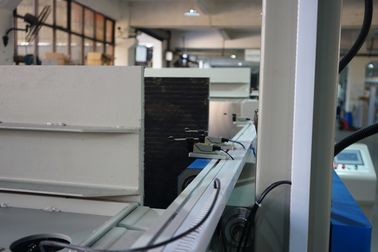

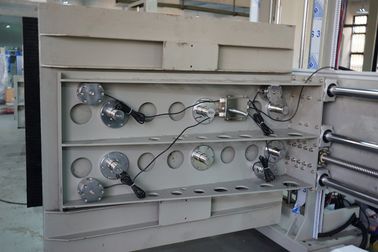

 1.Before placing the packaged product between platens, verify that the clamp force using the clamp indicator. The indicator should be placed between the axes of the platen articulation points approximately 1/2 way up the platens.

 2.Each time the product is clamped, the force should be applied for a minimum of 15 seconds and not to exceed 1 minute.

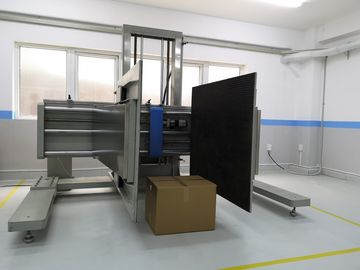

 3.ASTM D6055 PLC Control Package Clamping Compression Testing Machine Apply the clamp force on the sample with the platens resting on the floor and the front edge of the platens flush with the front of the package (see flush platen photo 4). If the package is too large for the clamps to be flush to front edge (i.e., large refrigerator, tractor etc.), clamp as close to the edge as possible.

 4. Clamp the product a total of 10 times in the flush orientation.

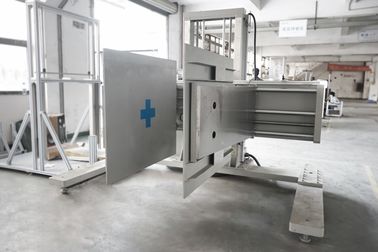

 5. Apply the clamp force on the packaged product with the platens in a 6×6 inch(15.2x15.2cm) offset position(see fig 5 ). Both the horizontal and vertical offset dimensions are measured at the front bottom corner of the platen. If the package is too large for the clamp to be positioned 6-inches from the front edge (i.e., large refrigerator, tractor etc.), clamp as close to this position as possible.

    1)Exception number 1: for large products with an obvious, visible external skid(see fig 6), offset clamp testing is not conducted if the product does not extend beyond any part of the skid and there is some form of handling graphic or note that indicates to clamp only from the skid. If there is no graphic or not indicating this or there is some overhang beyond the skid, then the entire clamp test protocol is conducted.

    2) Exception number 2: If the product height, when placed in its normal shipping orientation, is ≤ 12 inches, the 6 x6 inch offset testing is not conducted.

 6. Clamp the product a total of 10 times with the clamp in the 6 x6 inch offset position.

 7. Repeat step 5.2.5 except with a 2 x6 inch offset clamp position. The 2 x6 inch offset is similar to the 6 x6 inch offset except the platens are oriented such that they are 2-inches from the floor and 6-inches back from the package’s front edge. If the package is too large for the clamps to be positioned 2-inches from the front edge (i.e., large refrigerator, tractor etc.), clamp as close to this position as possible.

 8. Repeat flush and offset clamping on all other sides of the product that are indicated in the handling graphics as acceptable for clamp handling.

According to verdict standards, if there is one item failed the test, then put forward the “Test Failure Handling Sheet"



Parameters:



Clamping force:

50-3000kg

Size of the clamping board:

1200 by 1200mm

Maximum clamping space:

1200 by 1200 by 1200mm

Minimum clamping space:

400 by 1200 by 1200mm

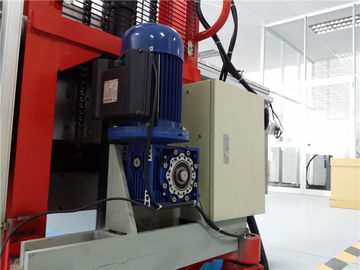

Clamping speed:

5-50mm/min

Up-down space:

100-600mm, adjustable, can be customized

Dimension: 3

810 by 1900 by 2100

Weight:

800kg

Power:

380v/ 50Hz

Control system:

PLC programmed control



Clamp Compression Testing Method of Small Products



Before clamp testing, verify that the clamp for using the clamp force indicator. The indicator should be placed between the axes of the platen articulation points approximately 1/2 way up the platens.

 During clamp compression testing of small products, 4 samples will be utilized as outlined below.

 1. If, when oriented for clamp testing (based on the handling graphics) the sides perpendicular to the platens of a single sample ≤ 24” (61cm), then the 4 sample should be placed in a”side by side”oritentation as shown to the fig 1(with 2 samples on the bottom and 2 on the top)

 2.  If, when oriented for clamp testing the sides perpendicular to the platens of a single sample are >24” (61cm),, then the 4 samples should be placed in a top-bottom orientation as shown fig 2. If, when placed 4-high, any of the samples are completely above the top of the platens, that sample can be removed from clamping in this orientation only(fig 3 shows 3 MHC’s ready for clamp testing with the 4th sample removed from testing in this orientation)

 3 Each time the samples are clamped, the force should be applied for a minimum of 15 seconds and not to exceed 1 minute.

 4 .Apply the clamp force on the samples with the platens resting on the floor and the samples flush with the front edge of the platens (see fig2). If the samples are too large for the clamps to be flush to front edge, clamp as close to the edge as possible.

 5.Clamp the product a total of 10times with the clamps in the flush orientation.

 6.ASTM D6055 PLC Control Package Compression Testing MachineApply the clamp force on the packaged product with the platens in a 2×2 inch offset position(see fig 3). Both the horizontal and vertical offset dimensions are measured at the front bottom corner of the platen. If the package is too large for the clamps to be positioned 2-inches from the front edge, clamp as close to this position as possible.

 7. Clamp the product a total of 10 times with the clamps in the offset position.

 8. Repeat the flush and 2x2 inch offset camping on all other sides of the product that are identified in the handling graphics as acceptable for clamp handling. Please note, depending on the box geometry, you may use both the side-by-side and top-bottom orientation during clamp testing.



ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester 0ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester 1ASTM D6055 Package Testing Equipment , PLC Control Package Clamping Compression Tester 2
