Weight Of Hexagonal Wood Barrel: | 109kg | Cylinder Weight: | 140kg |
---|---|---|---|
Maximum Size Of Mattress: | 2.3m×2.5m (optional) | Machine Size(L×W×H): | 2500mm×2800mm×2200mm |
Power: | 380V, 1.5kw | Model: | HD-F763 |
Highlight: | furniture testing equipment,fatigue testing equipment |
OEM Electric Spring Fatigue Testing Machines with Cornell Mattress Tester with Teco Motor
Specifications
1. Cornell Mattress Furniture Spring Fatigue Testing Machine is used to simulate human motion to assess th e durability of the mattress.
2. OEM
The usage
OEM Cornell Mattress Furniture Spring Fatigue Testing Machine Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress , simulate human motion to assess the durability of the mattress.
The main components:
1. Motor | Taiwan's Teco Motor with reducer of Italy |
2. Speed adjustment | Taiwan's "Ed Force" drive |
3. Guide bearing | Import from Japan. |
4. Rack | aluminum body and steel |
5. Control elements | Imported. |
Function and features:
1) Weight of hexagonal wood barrel | 2) 109kg |
3) Cylinder weight | 4) 140kg |
2) According to different mattress to adjust the rolling stroke(adjust the limit switch position) | |
3) low coefficient of friction guide, ensure full drum weight on the mattress. | |
4) Maximum size of mattress | 2.3m×2.5m (optional) |
5) The text display provides easy control and setting. | |
6) Machine size(L×W×H) | 2500mm×2800mm×2200mm |
7) Power | 380V, 1.5kw |

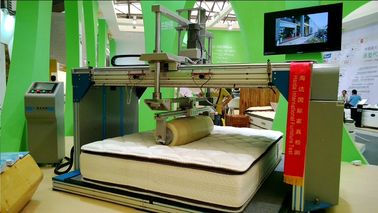

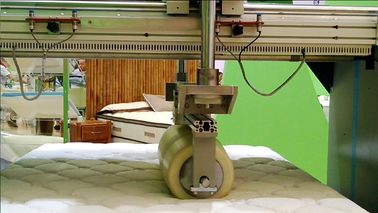

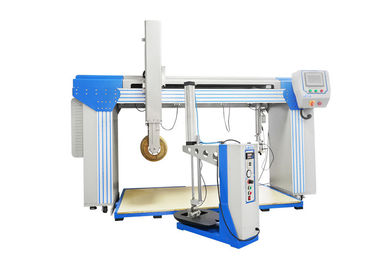

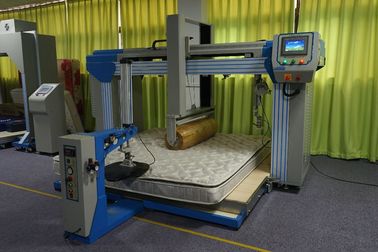

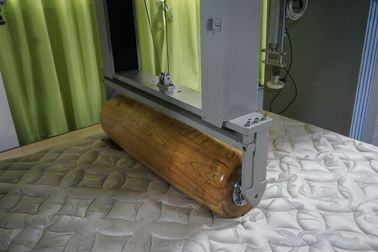

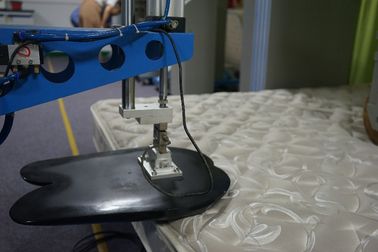

The pictures
