Material: | SUS 304 Steel | Power: | Electronic |
---|---|---|---|
Studio Size: | 400W*1140D*380Hmm | Outside Dimension: | 500W*1300D*1460Hmm |
Materials: | Inside And Outside SUS#304 Stainless Steel | Temperature Control: | PID SSR Control |
Highlight: | accelerated aging chamber,aging test machine |

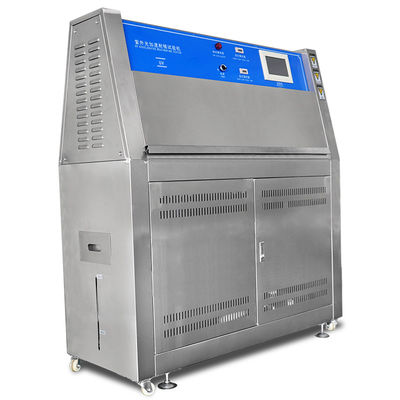

Automatical PID SSR Control UV Accelerated Weathering Tester
UV Accelerated Weathering Tester_pdf.pdf
Product description:
ASTM D4587 Automatically Control Accelerated UV Aging Testing Chamber can simulate the nature uv ligth to check the materials resistance of the wethering. UV tester is the most widely used UV Weathering tester in the world, there are thousands of ultraviolet aging testers coming into use.
Application industry (not limited to the following):
1. Paint ink paint, resin, plastic
2. Printing and packaging, aluminum, adhesives
3. Motorcycle industry, cosmetics,
4. Metal, electronics, electroplating, medicine and so on.
Applications function:
1.Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2.To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3.Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
Technical parameters:
ASTM D4587 Automatically Control Accelerated UV Aging Testing Chamber
Item | Specification |
Outside dimension | 1300W×500D×1460Hmm |
Chamber material | SUS#304 stainless steel |
Temperature range | RT~70℃ |
Temperature fluctuation | ±2℃ |
Temperature control | PID SSR control,PID self - tuning temperature control mode |
Humidity range: | About 45%~70% R.H. |
Controller | Programmable controller, LCD touch screen |
Control mode | Balance temperature humidity control (BTHC) |
Test cycle setting | Exposure, condensation and water spray test cycle is programmable |
Lamp power | 40W/Piece |
Distance from sample to lamp | 50±2mm |
Centre distance between the lamp | 70mm |
Irradiance | 0.45~0.8W/m2 (optional) |
UV lamps | Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime) |
Standard Specimen Size | 75×150mm (48pcs) |
Testing time | 0~999H, adjustable |
Protection system |
Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection |
Chamber Structure:
Accelerated Weather UV test machine
The inner bladder of the ASTM D4587 Automatically Control Accelerated UV Aging Testing Chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Chamber Features:
(1) Condensation device simulates the effect of humidity of outdoor, meeting 100% humidity.
(2) Electronic-eye irradiance control system
(3) Use blackboard temperature sensor providing precise temperature and recurring test result.
(4) Perform humidifying, condensation and water spraying circulating test.
(5) Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure (Paten technology)
Test Specimen Mounting:
The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.
Design criteria:
Accelerated Weather UV test machine
(1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings
(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)
(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance
(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics
(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics
(8) IEC 61345: UV Test for Photovaltalic (PV) Modules
Poduct image:
