4 Inch Suitcase Tester , Leather Oscillating Impact Handle Fatigue Testing Machine

Brand Name:	HAIDA
Model Number:	HD-D114-2
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Test Stroke:

0-15cm,adjustable

Oscillation Mode:

Impact Device Can Move Up And Down, Suction Cup Noise Reduction Device

Design Criteria:

QB/T2922-2007

Power Supply:

1, 220V/50Hz

Supply Ability:

300 Sets per Month Haida

Highlight:

Fatigue Testing Machine

Product Description

4 Inch Suitcase Tester , Leather Oscillating Impact Handle Fatigue Testing Machine

Specifications

Leather Suitcase Oscillating Impact Of Handle Fatigue Testing Machine is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines

The usage

Leather Suitcase Oscillating Impact Of Handle Fatigue Testing Machine is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines and the whole structure of luggages. The testing methods are as follows: First, Load the object with stated load weight. And then do the test to the specimen with the speed of 30 times per minute and the impact height of 4 inches for 2500 times. The test result can be taken into consideration of quality improvement.

The main technical parameters:

Leather Suitcase Oscillating Impact Of Handle Fatigue Testing Machine
Model	HD-D114-2
Design criteria	B/T2922-2007
Metal bracket height	250cm;
Test stroke	0-15cm adjustable;
Maximum bearing weight	50kg
Vibration mode	The impact device can move up and down, the suction cup noise reduction device, the suction cup has a pneumatic pressure noise reduction device, which can reduce unnecessary vibration of the test piece;
Damping spring constant	(single) 17.54N / m (± 5%);
Test speed	10～ 30r / min can be adjusted;
Recording device	with automatic recording function
Control method	adjustable test speed, set the number of impact tests, and have an automatic shutdown function when the sample is dropped halfway
Power system	pneumatic control
Machine size	(L × W × H) 1400 × 1200 × 3250mm;
Weight	250Kg;
Power supply	1∮, 220V / 50Hz.

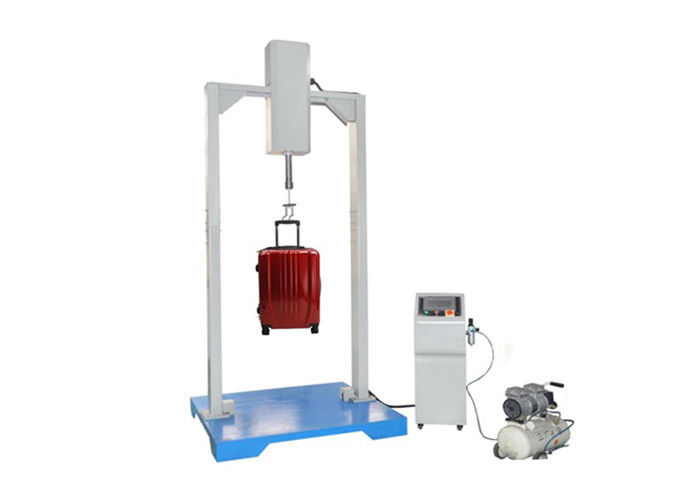

4 Inch Suitcase Tester , Leather Oscillating Impact Handle Fatigue Testing Machine 0
