Product Details:
Payment & Shipping Terms:
|
| Capacity: | 2 T | Load Accuracy: | ≤0.5% |
|---|---|---|---|
| Load Resolution: | 1/100,000 | Operation Mode: | PC |
| Power: | Electronic | Power: | 1ø, 220v/ 50Hz |
| Weight: | Approx. 850kg | ||
| High Light: | packaging testing instruments,packaging drop test equipment |
||
Electronic Carton Compression Tester , Computer Servo Box Carton Compressive Testing Machine
Specifications
1.High quality with reasonable price
2.One year free aftersale service
3.Easy operation
1.About the machine:
Electronic Computer Servo Box Carton Compressive Testing Machine is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
2.Design criteria:
|
TAPPI-T804,JIS-20212,GB4857.3.4, |
3.Specifications:
|
Electronic Computer Servo Box Carton Compressive Testing Machine |
|
|
Model |
HD-A505S-1500 |
|
Unit (switchable) |
Kg, Lb, N |
|
Capacity (optional) |
2 T ,5T |
|
Load Resolution |
1/100,000 |
|
Stroke (exclude the grips) |
400 mm |
|
Load Accuracy |
≤0.5% |
|
Test Space (L×W×H) |
1500×1500×1500mm |
|
Speed of Compression |
10 ± 3 mm/min |
|
Operation Mode |
PC |
|
Report Items |
Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
|
Structure |
AC Frequency Conversion Motor ( Taiwan); |
|
Dimension (L×W×H) |
2370×1500×2100mm (can be custom made) |
|
Power |
1ø, 220v/ 50Hz |
|
Weight |
Approx. 850kg |
|
Safety Devices |
Overload protection, overvoltage protection & limited position protection device |
|
Standard |
TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
4.Features of Electronic Computer Servo Box Carton Compressive Testing Machine:
Electronic Computer Servo Box Carton Compressive Testing Machine Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
Electronic Computer Servo Box Carton Compressive Testing Machine can do test of compression, bending, pressure holding & fatigue.
Electronic Computer Servo Box Carton Compressive Testing Machine With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

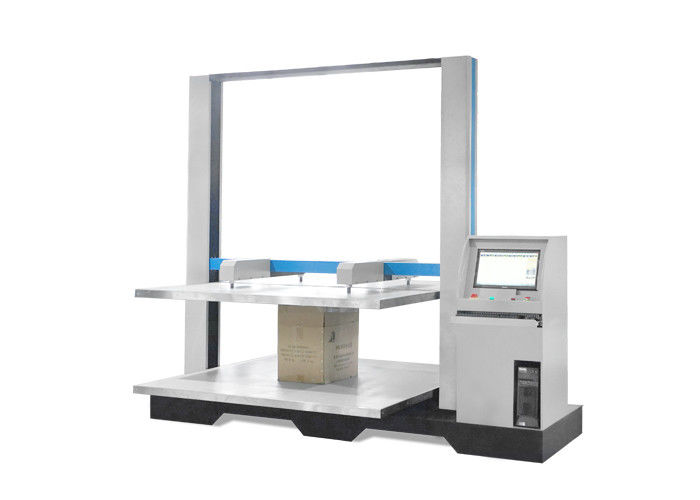

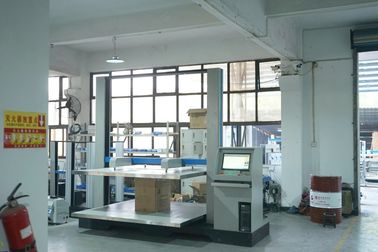

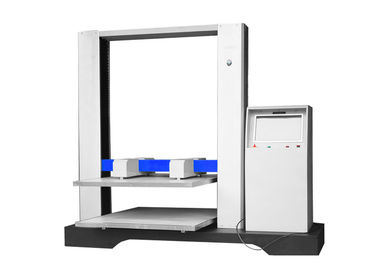

5.The image of Electronic Computer Servo Box Carton Compressive Testing Machine
