Product Details:
Payment & Shipping Terms:
|
| Brine Tank Capacity: | 15L|25L | Equipment Material: | P.V.C Rigid Plastic Board |
|---|---|---|---|
| Lab Volume: | 108L|270L | Temperature Precision: | ±1℃ |
| Temperature Range: | 35℃～55℃ | Spray Quantity: | 1.0~2.0 Ml / 80cm2 / Hr |
| Highlight: | corrosion testing equipment,salt spray testing equipment |
||

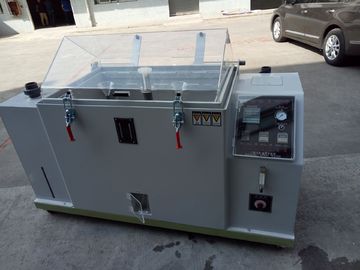

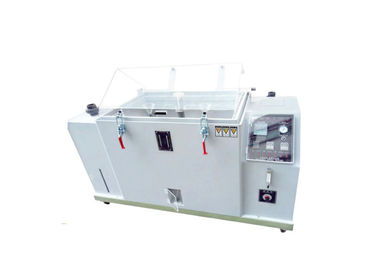

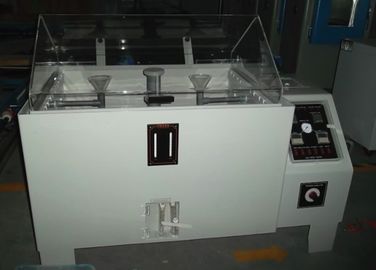

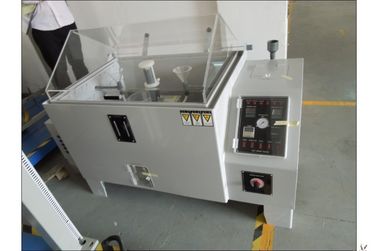

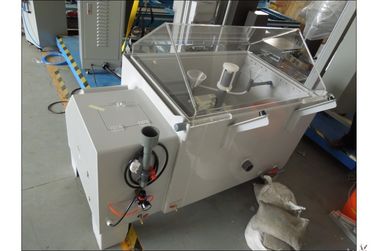

Standard Salt Spray Corrosion Test Chamber , Plastic Corrosion Resistant Testing Machine
Product introduction:
Standard Salt Spray Corrosion Test Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Application Industry:
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others
Specifications
Salt Spray Corrosion Testing Chamber
1. Durable hard PVC construction
2. Anti-corrosion, easy clean
3. 1 set nozzle + 2 sets spray collection funnel + transparent PVC cover
Design standard:
CNS:3627,3385,4159,7669,8886；JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: B117,B268.
Standard Parameters:
| Model | HD-E808-90 |
| Internal Size (L×W×H) | 900x600x500mm |
| External Size (L×W×H) | 1410x880x1280mm |
| Equipment Material | Both inside & outside shell adopt P.V.C rigid plastic board |
| Temperature Range | Room temperature ~ 55℃ |
| Temperature Fluctuations | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spraying method | Continuous and Periodic spray type |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃ |
| Brine Temperature | 35℃±1℃ |
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
| PH value | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Lab Volume | 270L |
| Brine Tank Capacity | 25L |
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
| Accessories | Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
| Air source | 1HP Air pump (provided by buyer) |
Product Features:
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
