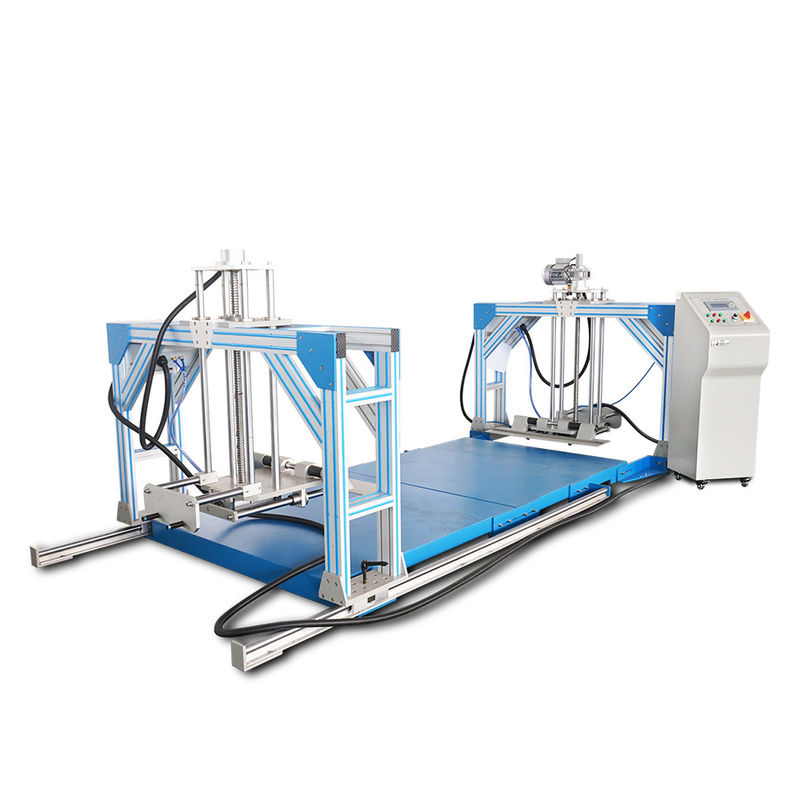

Simulate Impact Furniture Testing Machines , Drop Situation Sofa Testing Machine

Brand Name:	HAIDA
Model Number:	HD－F767
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Control Method:

LCD + Large Digital Interface

Power:

220V, Single Phase

Product Name:

Furniture Testing Equipment

Cylinder Diameter:

50mm

Cylinder Height:

800mm

Type:

Drop Situation Sofa Testing Machine

Supply Ability:

300 Sets per Month Haida

Highlight:

fatigue testing equipment

impact testing machine

Product Description

Simulate impact or drop situation sofa testing machine

Parameter:

Items	Specification

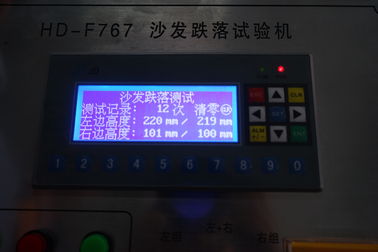

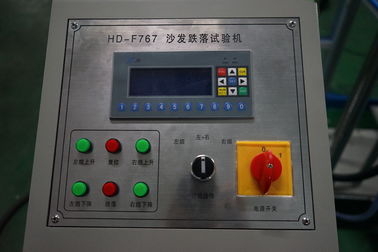

Controller	LC + large screen LCD
Cylinder height	800mm
Test times	0~32000
Cylinder diameter	50mm
Max pressure	1.0MPa(10.2Kgf/cm²⁾
Power	1∮,220V,50HZ
Machine size	(L×W×H) 2250mm×1550mm×1920mm

Usage: Simulate impact or drop situation sofa testing machine is design to test sofa during moving or transportation, simulate impact or drop situation, assess product’s whole impact strength. Two sides is independent, can rise one side or two sides at same time. Drop height from 75mm to 300mm.
