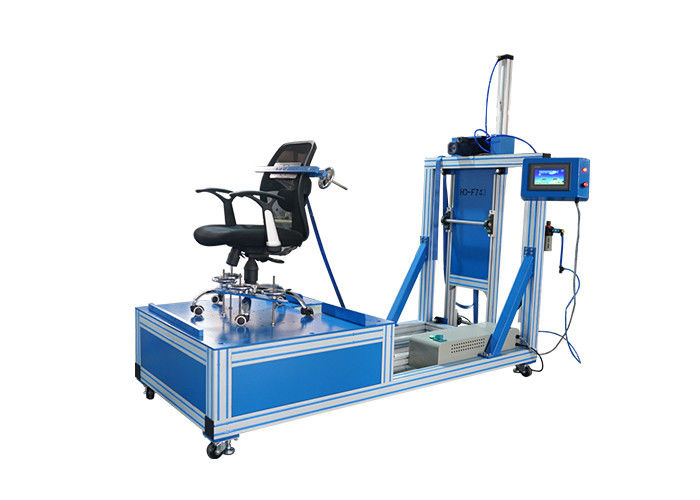

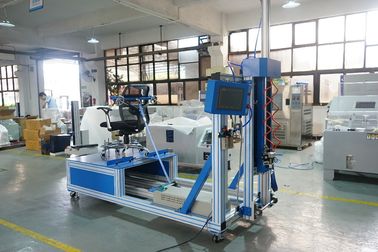

Chair Vertical And Horizonal Strength Comprehensive Testing Machine with PLC Controller
Main function:

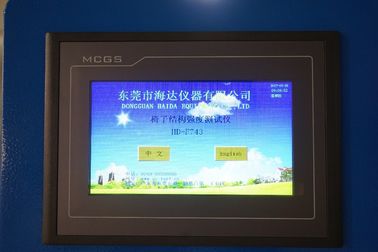

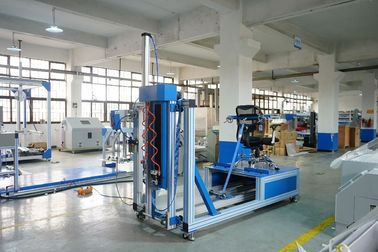

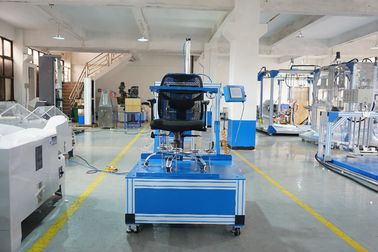

Chair vertical and horizonal strength comprehensive testing machine is designed to test office chair arm( vertical and horizonal test ) and back strength. It with PLC controller, touch screen interface to input test parameters, test force and times can be set, count the time when reach setting force and return back automatically when time over.
Design standard: BIFMA X5.1-2011 5,6,10,13,14,15,16,19,20
Main technical parameters:
1) Capacity: 0-500kg
2) Setting time: 0-99S
3) Machine size: (L×W×H)1500×1400×1800mm
4) Test accessories: One test platform for arm test; arm vertical test grips; one back strength test grips.
|
Standard |
Content |
Accessories |
|||
|
Clause 5
|
Backrest Strength Test Static – Type I
|
Chair Measuring Device x1
The chair measure x 1 |
|||
|
6 |
Backrest Strength Test Static - Type II & III
|
|
|||
|
11.4 |
Front corner Load-Ease Test – Cyclic |
Diameter 203 mm loading device x 1 |
|||
|
10 |
Tilt mechanism Test
|
102kg one weight
|
|||
|
12.3, & 12.3.2 |
Rear Stability Test for type I.II, & III chair
|
1) Stability Disks x 13
2) 1.5 x 356 x 711 mm polypropylene support fixture x 1 |
|||
|
12.4 |
Front stability
|
12d Front stability loading fixture X 1 12e front stability loading disk x 1 12g front stability loading fixture X 1 135 lb farmar 1 Pull-push gauge with attachment x 1 |
|||
|
13 |
Arm strength test -vertical-static
|
Loading adaptor (100 x 127 mm) x 1 C- fixture x 1 |
|||
|
14 |
Arm strength test Horizontal-static |
|
|||
|
15 & 16
|
Backrest durability test -cyclic for type I, II & III
|
Loading device (back pull) x 1
Form fitting device 305mm+/- 13mm x 89mm +/-13mm & thickness 12mm x 4
|
|||
|
22 |
Out stop Test
|
74 kg counterweight iron x 125 kg counterweight iron 1 x |
|||
|
23 |
Tablet Arm Chair Static Load Test |
|
|||
|
24 |
Tablet arm chair load ease test – Cyclic
|
|
Main Parameters:

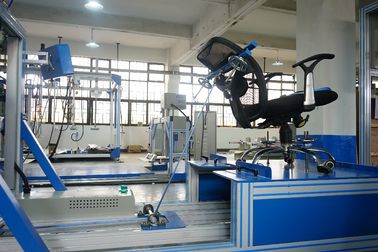

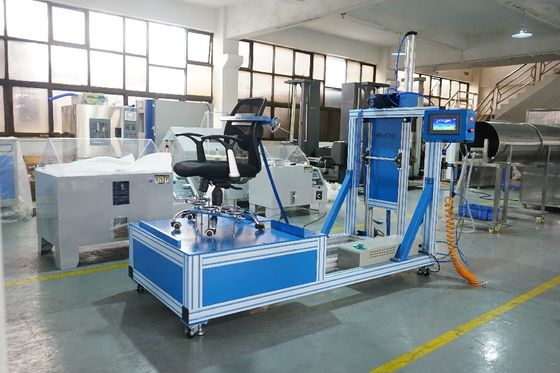

Chair vertical and horizonal strength comprehensive testing machine consists form several parts
1, Tension mechanism, servo motor and the strap pulley architecture, the intensity of the rotation transformed into tension and supplemented force values turn sensor read correctly tension, the action of the closed-loop control of servo motor to achieve a number of pull. Static and cyclic testing. Rally and speed can be set free. Mainly used for 5, 6,13,14,15, and 16 test.
2, In addition to this machine is also configured with two groups of electric actuator, respectively, for a group of the vertical apparatus and the horizontal apparatus 1 group, each group independently adjust the speed and thrust. Stroke is 500mm
3, The vertical means of the servo motor can be used for the actuator, the vertical position adjustment, mainly used for the first 11.4,22,23 and 24 of the test; the maximum pressure is 150 kg.
4, Level device servo motor caused the brake position adjustment of the pieces up and down and left and right mobile and flexible to meet the demand for different test location, is mainly used for 10,12.3 and 12.4 testing. 50 kg maximum thrust, adjustable up and down the range from 500 mm to 1200 mm.
5, the bottom plate of the test machine drilling multiple rows of screw holes for easy installation of different
attachments and fixed test conditions
6, each electric actuator front-end with a quick connector for easy replacement of the load block and fixture
7, control mode: PLC with LCD touch screen
8, the maximum tension value:150kg
9, the maximum thrust value(horizontal):50kg
10, the maximum pressure value(Vertical)150kg
11, Can be equipped with computers, recording force and displacement changes.
