Single Phase Furniture Testing Machines , Sofa Durability Testing Equipment

Brand Name:	HAIDA
Model Number:	HD-F761
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Control Method:

PLC Programmable Controller

Power:

220V, Single Phase

Product Name:

Furniture Testing Equipment

Pressure Sensor Precision:

±0.3% FS

Standards:

QB/T1952.1-2003

Type:

Sofa Durability Testing Equipment

Supply Ability:

300 Sets per Month Haida

Highlight:

fatigue testing equipment

impact testing machine

Product Description

Single Phase Furniture Testing Machines , Sofa Durability Testing Equipment

Product description:

Seat, back and arm rest of sofa durability testing equipment property test mainly test durability of seat, back and arm rest.

Using certain shape and load modules, with specific form, frequency, respectively, repeating load seating to test backrest and armrest.

Seat, back and arm rest of sofa durability testing equipment test method is to simulate the daily use condition, to inspection sofa durability under long-term repeatability load capacity.

Main technical parameters:

Item	Specification
Seat load	750 N
Backrest load	400 N
Test cycle	25,000 times to 200,000 times
Pressure sensor accuracy	0.3%. Each force point is equipped with a pressure sensor to read the pressure value.
Full range control panel	Programmable controller + color display touch screen
Maximum size of test piece	(L × W × H) 2200 × 1200 × 1200mm
Machine weight	400kg
Power source	1∮, AC220V, 50Hz
Compressed air	7kg / cm²
It can simulate the durability and service life of the sofa and different parts such as the seat back and armrests, and can perform the alternating durability test on the seat surface, backrest and armrests of the sofa.

1. The seat, backrest and armrest of the sofa durability test equipment can test the seat separately, test the backrest and armrest separately or perform continuous test.
2. Two sets of cylinders are used for back thrust test, each group has a thrust force sensor, and the force can be set.
3. Two sets of oil cylinders for armrest test, each with a thrust force sensor, the force can be set.
4. The main control interface of the color touch screen, different test conditions and abnormal parameter settings are simple and convenient.
5. Pressure sensor accuracy ± 0.3% FS
6. Compressed air is required and the pressure is 7kg / cm2.
7. Power supply 220V, single phase
8. Standard: QB / T1952.1-2003

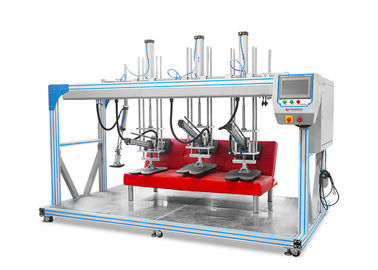

Single Phase Furniture Testing Machines , Sofa Durability Testing Equipment 0
