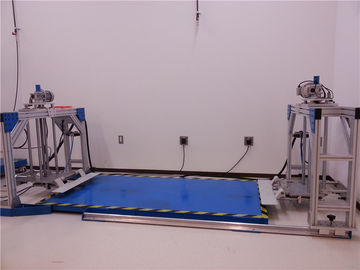

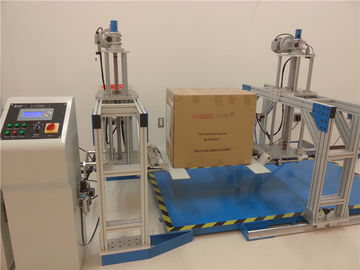

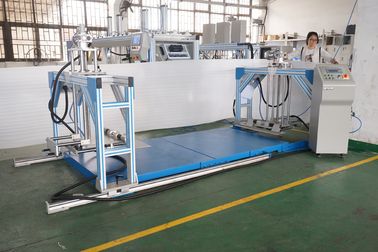

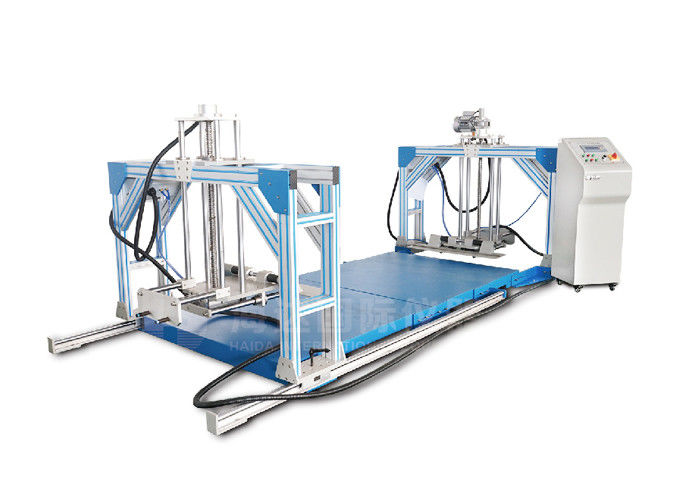

Digital Furniture Testing Machines/Interface Sofa Drop Testing Machine
  • name
  • name
  • name
  • name
  • name

Digital Furniture Testing Machines/Interface Sofa Drop Testing Machine

Brand Name: HAIDA
Model Number: HD－F767
MOQ: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Control Method:
LC + Large Screen LCD
Lifting Height:
75mm-300mm
Product Name:
Furniture Testing Equipment
Port:
0~32000
Machine Size:
2250mm * 1550mm * 1920mm
Bore:
50mm
Supply Ability:
300 Sets per Month Haida
Highlight:

furniture testing equipment

,

fatigue testing equipment

Product Description

Digital Furniture Testing Machines/Interface Sofa Drop Testing Machine



Usage: Large digital interface sofa drop testing machine is design to test sofa during moving or transportation, simulate impact or drop situation, assess product’s whole impact strength. Two sides is independent, can rise one side or two sides at same time. Drop height from 75mm to 300mm.



Items Specification
Testing Contents the tester can be lifted on one side or dragged and dropped

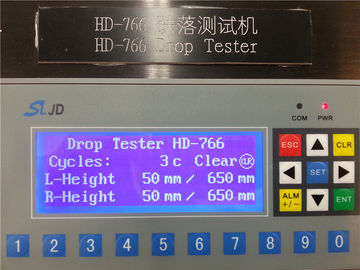

Control panel LC + large screen LCD
Lifting height 75mm-300mm, adjustable
Cylinder height 800mm
Test times 0-32000 times
Bore 50mm
Maximum air pressure value 1.0MPA
Machine size 2250mm * 1550mm * 1920mm

Main configuration:

1) PLC            inovance

2) monitor       mitsubishi

4) program     haida independent research and development

5) electrical

6) cylinder      Taiwan

7) motor          Taiwan

8) ball screw  Taiwan


 Digital Furniture Testing Machines/Interface Sofa Drop Testing Machine 0Digital Furniture Testing Machines/Interface Sofa Drop Testing Machine 1
