Plastic Board Salt Spray Corrosion Testing Chamber With Multiple Safety Protection Device

Brand Name:	HAIDA
Model Number:	HD-E808-90A
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Brine Tank Capacity:

15L|25L

Equipment Material:

P.V.C Rigid Plastic Board

Lab Volume:

108L|270L

Temperature Precision:

±1℃

Temperature Range:

35℃～55℃

Temperature Uniformity:

≤±2℃

Supply Ability:

300 Sets per Month Haida

Highlight:

corrosion testing equipment

corrosion test chamber

Product Description

Plastic Board Salt Spray Corrosion Testing Chamber With Multiple Safety Protection Device

1. Product introduction:
P.V.C Rigid Plastic Board Salt Spray Corrosion Testing Chamber is is designed for surface treatment of corrosion-resistant capacity test for various materials,including paint, electroplating, organic and inorganic film, antirust oil,chemicaltreatment, and then achieves a long period of resistance to corrosion products.
Ferrous and non-ferrous metals are attacked continuously by humidity, acids, solutions, gases etc. It is therefore vitally important to choose the correct surface protection. There are many materials and qualities on the market and their properties must be properly assessed. Materials intended to prevent corrosion must be tested if failures are to be avoided. Furthermore the comparative quality control during production is of increasing importance. The best known processes employ spray vapour tests using various salt solutions as well as condensation water climates.

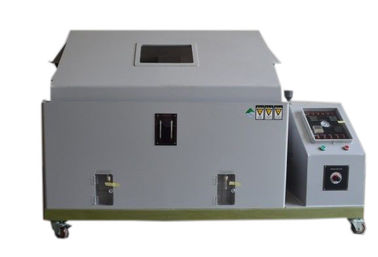

Plastic Board Salt Spray Corrosion Testing Chamber With Multiple Safety Protection Device 0

P.V.C Rigid Plastic Board Salt Spray Corrosion Testing Chamber

3. Design standard:
CNS:3627,3385,4159,7669,8886；JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM:B117,B268.

Model	HD-E808-60A	HD-E808-90A	HD-E808-120A
Inner box size: (L×W×H) cm	60×40×45	90×60×50	120×100×50
Outside box size: (L×W×H)cm	107×60×118	141×88×128	190×130×140
Equipment material:	Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C.
Temperature range:	35℃～55℃
Temperature fluctuations:	≤±0.5℃
Temperature uniformity:	≤±2℃
Temperature precision:	±1℃
Test chamber temperature	NSS ACSS 35±1℃ CASS:50±1℃
Saturated air barrel temperature:	NSS ACSS 47±1℃ CASS 63±1℃
Brine temperature:	35℃±1℃
Spray quantity:	1.0~2.0 ml / 80cm2 / hr
PH:	NSS ACSS6.5~7.2 CASS 3.0~3.2
Lab volume:	108L	270L	600L
Brine tank capacity:	15L	25L	40L
Power:	1∮AC220V,10A	1∮AC220V,15A	AC 1∮,220V,30A
Multiple safety protection devices:	Water shortage/ over temperature / phase protection
Standard accessories:	Test salt, measure bucket, tool etc 1 set

Picture Show :

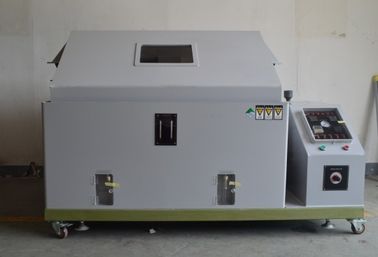

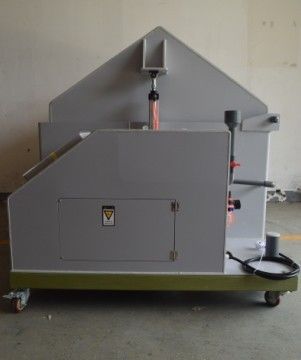

Plastic Board Salt Spray Corrosion Testing Chamber With Multiple Safety Protection Device 1
