LED Touch Screen Suitcase Tester , Vibration Impact Testing Machine
1.Description:

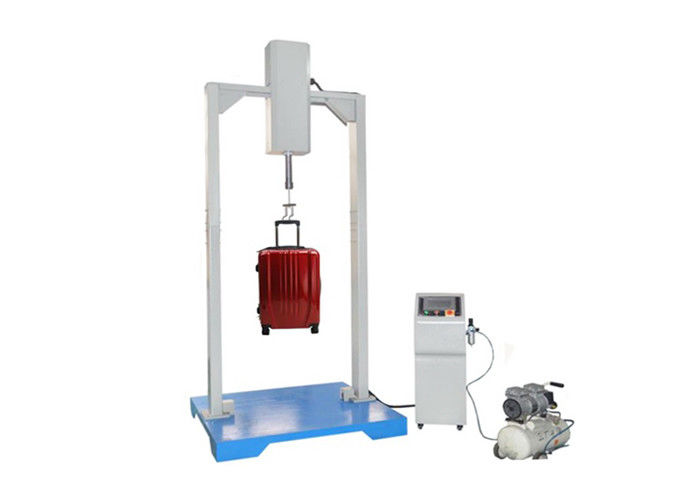

LED Touch Screen Suitcase Vibration Impact Testing Machine is used to test the vibration resistance of full unit handle, can be referred to improve product quality.
2.Working principle:
The LED Touch Screen Suitcase Vibration Impact Testing Machine testing method is to load a certain weight on the specimen, impact it for 2500 times by 30times/minute and 4" distance.
3.Design criteria:
QB/T 2922-2007
4.Technical parameter:
LED Touch Screen Suitcase Vibration Impact Testing Machine
Item | Specification |
Counter | LED, 1~9,999,999times, auto stop |
Control method | PLC control, touch screen |
Metal bracket height | 2500mm; |
Test stroke | 0-150mm adjustable; |
Maximum bearing weight | 50kg |
Vibration mode | The impact device can move up and down, the suction cup noise reduction device, the suction cup has a pneumatic pressure noise reduction device, which can reduce unnecessary vibration of the test piece; |
Damping spring constant | (single) 17.54N / m (± 5%); |
Test speed | 10 ~ 30r / min can be adjusted; |
Recording device | with automatic recording function |
Control method | adjustable test speed, set the number of impact tests, and have an automatic shutdown function when the sample is dropped halfway |
Power system | pneumatic control |
Machine size | (L × W × H) 1400 × 1200 × 3250mm; |
Weight | 250Kg; |
Power supply | 1∮, 220V / 50Hz. |
Specifications
LED Touch Screen Suitcase Vibration Impact Testing Machine
1.Hi-Q,Factory outlet
2.Professianl design,fast delivery
3.Reasonal price
5.Maintenance:
1, Clean: Clean of machine with cotton fabric before and after usage each time;
2, Anti-rust: Spray anti-rust oil on metal unit of the machine each week (Clean in 2 hours after spraying);
3, Lubricating oil: Add lubricating oilto rotating parts (screw) of machine every month;
