Office Chair Rotating Testing Machines , Furniture Testing Equipment

Brand Name:	HAIDA
Model Number:	HD-F731
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Cylinder Stroke:

0-300mm

Machine Size:

270*85*80cm

Power:

10-30 Times/minute Or Specified

Use:

Office Chair

Port:

Impact 100000 Times+ Static Pressure 20000 Times(left) +static Pressure 20000times (right)

Standard:

BIFMA X5.1-2002, Test No. 8,11

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

impact testing machine

Product Description

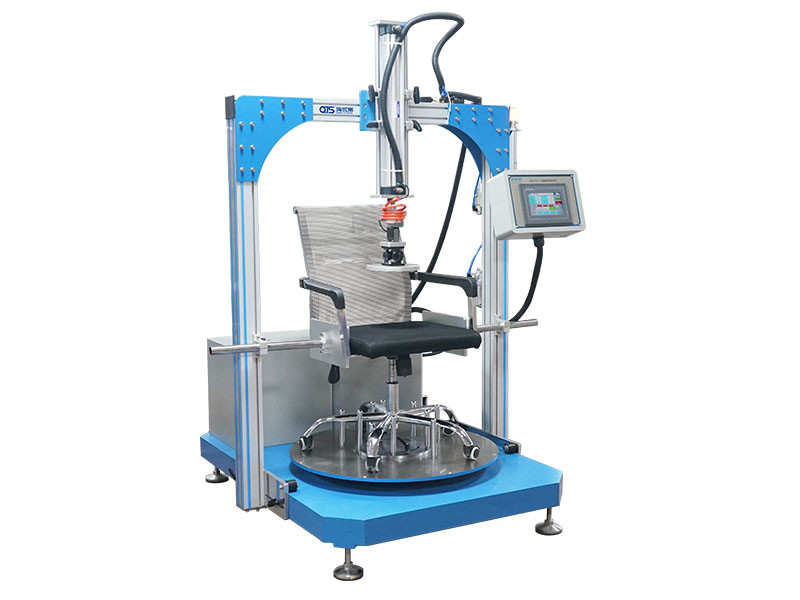

Office Chair Rotating Testing Machines , Furniture Testing Equipment

The Usage

1. Office Chair Rotating Furniture Testing Machine is a two station testing equipment.

2. Office Chair Rotating Furniture Testing Machine is used to test the durability of the seat of the chair.

3. According to test Standard: BIFMA X5.1-2002, Test No. 8,11
4. Applicability: This test applies to all types of chairs.
5. Purpose of Test: to evaluate the ability of a chair to withstand heavy impact forces on the seat.
6. Office Chair Rotating Furniture Testing Machine is designed for dynamic and cyclic durability seat test.

Specifications

Office Chair Rotating Furniture Testing Machine
Mode	HD-F731
Counter	0-999,999, memory, output control
Impact sandbags diameter	16 inch 125 pounds standard sandbbags
Static pressure mould diameter	8 inch, 165 pounds briquetting
Impact speed	10-30 times/minute or specified
Static pressure speed	10-30 times/minute or specified
Cylinder stroke	0-300mm
Rail height	90-135cm
Machine size	2708580cm
Power	AC220V, 3A
BIFMA requirements	impact 100000 times+ static pressure 20000 times(left) +static pressure 20000times (right)

Office Chair Rotating Testing Machines , Furniture Testing Equipment 0

Office Chair Rotating Testing Machines , Furniture Testing Equipment 1

HAIDA Introduction:

Haida established in 2004 in Dongguan City, where is the "silicon valley" of world manufacturing industry. It is a certified national high-tech enterprise engaged in design, research and development, production, sales, calibration and after-sale service of test equipment, such as paper&packaging test equipment, Furniture test equipment, material mechanics test equipment, optical measurement equipment, environmental reliability testing equipment etc. With the persistent efforts of all staff, Haida owned 4 factories with total 60, 000 square meters, 15 branch offices covers South China, North China, East China, Central China and Northwest China, as well over 20 overseas after-sales service sites covers Southeast Asia, Europe, North America and the Middle East with over 28, 000 customers.
