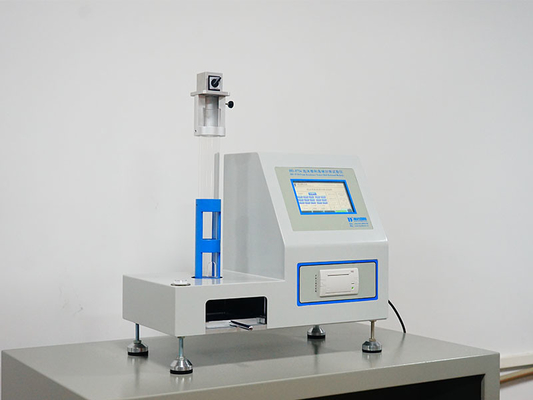

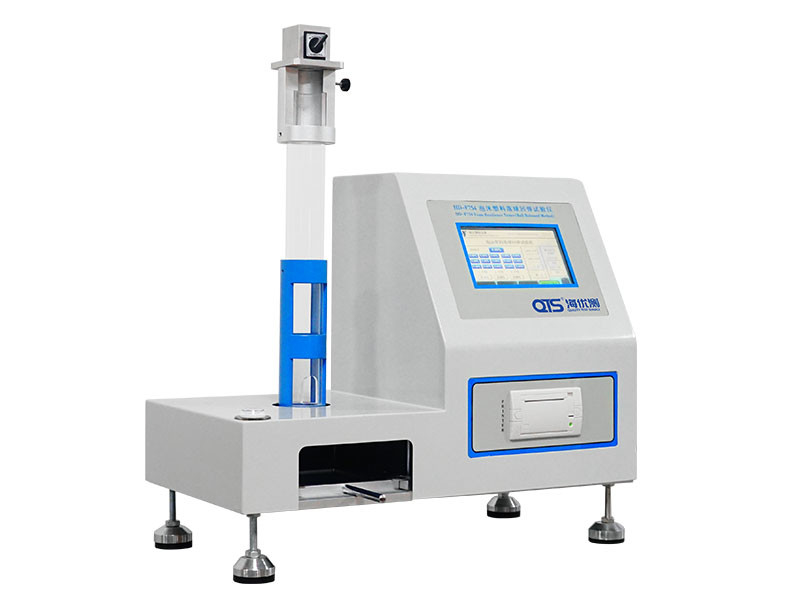

Resilience Rebound Foam Furniture Testing Equipment For Sponge Foam Resilience Test

Resilience Rebound Foam Furniture Testing Equipment For Sponge Foam Resilience Test
Resilience Rebound Foam Furniture Testing Equipment For Sponge Foam Resilience Test
video play

Large Image :  Resilience Rebound Foam Furniture Testing Equipment For Sponge Foam Resilience Test

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F754
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Controller: LCD Touch Screen Control Product Name: Furniture Testing Equipment
Usage: To Test Foam Resilience Test Standard: ASTM D3574, ISO8307 ,SES N3296
Specimen Size: 100 Mm (L) × 100 Mm (W) × 50 Mm (H) Rate Accuracy: <0.5%
Highlight:

fatigue testing equipment

,

impact testing machine

Resilience Rebound Foam Furniture Testing Equipment For Sponge Foam Resilience Test



1. Usage:

Resilience Rebound Foam Furniture testing Equipment is used to test foam resilience.



2. Principle:

Resilience Rebound Foam Furniture testing Equipment Use the specific diameter and materials steel ball from a specified height given free fall to the foam sample. Measured by the photoelectric sensor steel balls bounce and fall time, and then calculated by the microprocessor for the steel ball rebound height. Resilience Rebound Foam Furniture testing Equipment Base on GB/T667, every specimen need to test three times,select the maximum height as the rebound height of the specimen,and record the average height for the rebound height value.

foam test machine

3. Standard

GB/T6670,ISO8307,QB/T1952.1,ASTM D3574



4.Specifications

Items Specifications
Test standard It conforms to ASTM D3574 standard and ISO8307 test standard, and also meets the test method of urethane foam SES N3296 for Japanese car seat cushions.
Falling distance of steel ball 460 ± 0.5% mm (national standard) 500 ± 0.5% mm (American standard)
Steel ball diameter ¢ 16 ± 0.05 mm
Ball rebound accuracy <0.5%
Test sample size 100 mm (L) × 100 mm (W) × 50 mm (H)
Main configuration

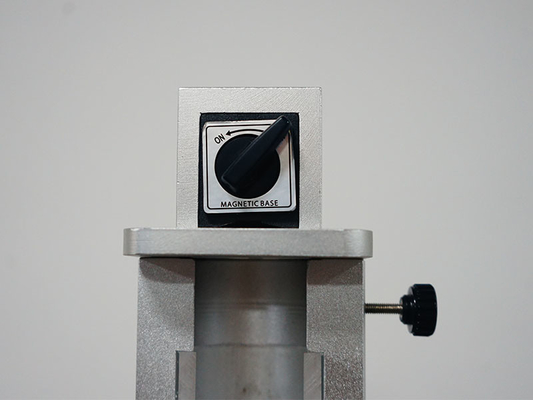

1. A set of host (including release mechanism, height adjustment mechanism);

2. A set of optical fiber ranging sensor, a set of control box (LCD touch screen control), can be connected with USB interface

Design standard GB / T 6670-2008

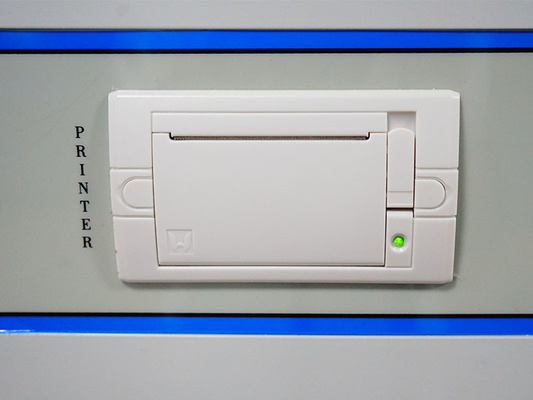

Controller Use microprocessor to control, LCD Chinese display, and print test data.
Features Automatic calculation of average rebound rate
