LCD Paperboard Paper Testing Equipments , Touch Screen Control MIT Folding Ftrength Endurance Tester

Brand Name:	HAIDA
Model Number:	HD-A519-1
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Outside Dimension (L×W×H):

400×350×830mm

Power:

AC 220V，2.6A

Port:

15×(150~200)mm

Sample:

15×(150~200)mm

Counter:

LCD,0~999,999

Weight:

40 Kg

Power:

AC220V,2.6A

Supply Ability:

300 Sets per Month Haida

Highlight:

paper tensile strength tester

paper testing instruments

Product Description

LCD Paperboard Paper Testing Equipments , Touch Screen MIT Folding Endurance Tester

The product Description:
LCD Paperboard MIT Folding Endurance Testing Equipment is used to test the folding resistance strength of paper and cardboard , the method is to fasten the two ends of specimen on the machine , make the specimen bear a certain extent stretching force by exerting influence on the lower fixture with the needed load, the lower fixture will bend the specimen in vertical condition from side to side , the bending angle is 135 degree, and the test value will be calculated automatically when the specimen is broken .

Specifications
LCD Paperboard MIT Folding Endurance Testing Equipment
1.calculate the test value automatically
2.flex machine
3.for determining the folding endu

The parameters :

LCD Paperboard MIT Folding Endurance Testing Equipment

Model	HD-A519-1
Sample size	15 × (150 ~ 200) mm
Load method	weight type, 4.91N, 9.81N, 14.72N
Control mode	PLC control touch screen operation;
Counter	0 ～ 9999 times
Bending angle	135 ° ± 2 °
Folding speed	175 ± 10 times / min
Folding head width	19 ± 1mm
The arc radius of the fold	0.38 ± 0.02mm
Folding head gap	max 1.0mm
Dimensions	(L × W × H) 400 × 350 × 830mm
Power supply	1∮, AC220V, 2.6A
Weight (approx)	about 40kg

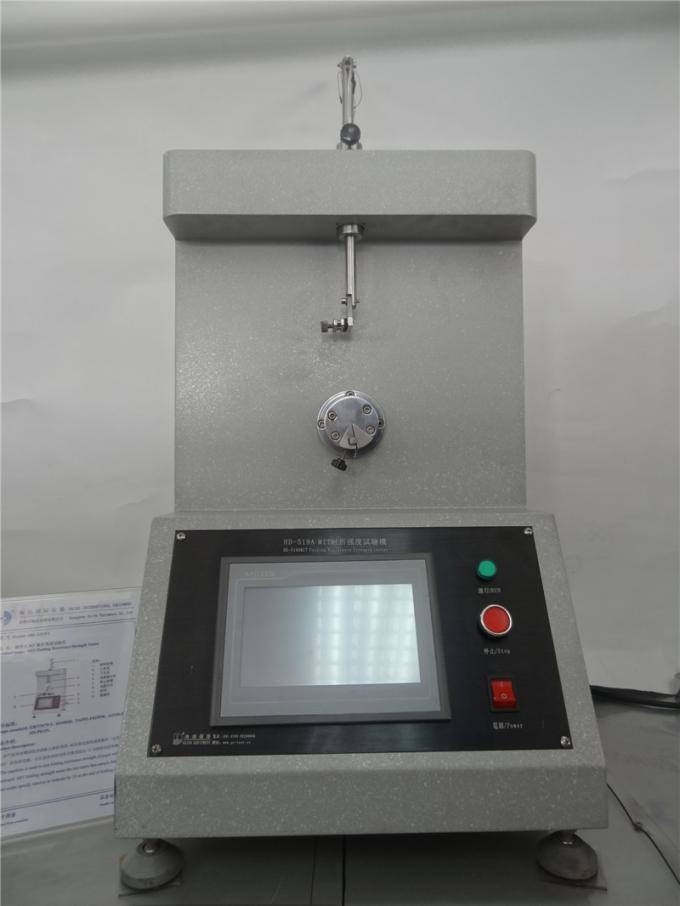

The image of the machine:

LCD Paperboard Paper Testing Equipments , Touch Screen Control MIT Folding Ftrength Endurance Tester 0
