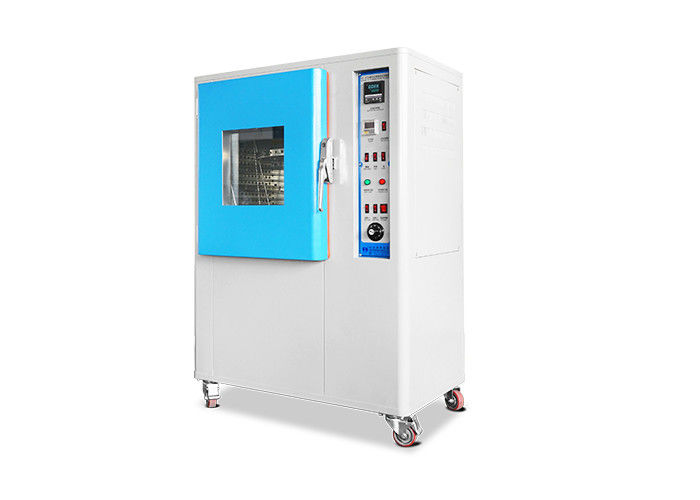

Environmental Anti-Yellowing Resistance Aging Testing Chamber JIS-P8127 / ASTM D1148

Environmental Anti-Yellowing Resistance Aging Testing Chamber JIS-P8127 / ASTM D1148
Environmental Anti-Yellowing Resistance Aging Testing Chamber JIS-P8127 / ASTM D1148 Environmental Anti-Yellowing Resistance Aging Testing Chamber JIS-P8127 / ASTM D1148 Environmental Anti-Yellowing Resistance Aging Testing Chamber JIS-P8127 / ASTM D1148 Environmental Anti-Yellowing Resistance Aging Testing Chamber JIS-P8127 / ASTM D1148 Environmental Anti-Yellowing Resistance Aging Testing Chamber JIS-P8127 / ASTM D1148

Large Image :  Environmental Anti-Yellowing Resistance Aging Testing Chamber JIS-P8127 / ASTM D1148

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E704
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electric Product Name: Environmental Testing Chambers
Standard: GB/T16585-1996,GB14522-93,GB/T16422.3-97 Temperature Range: Normal Temperature~200C
Control Mode: Automatic Calculation Controller Temperature Display: 0.1C
High Light:

environmental testing equipment

,

environmental testing machine

Environmental Anti-Yellowing Resistance Aging Testing Chamber JIS-P8127 / ASTM D1148





Instruction:

1, Temperature controller it is used to set inner chamber temperature
2, Timer 0~999.9H,powerfailurememory;
3, Fan open the fan in the machine;
4, Dial dial rotary switch;
5, Heat light it will light when heat the test chamber;
6, Heat one low temperature test switch;
7, Time switch timer switch;
8, Light anti-yellowinglightswitchinthetestchamber;
9, Finishlight it will light when finish thetest;
10, Heat two high temperature test switch;
11, Power main power switch;
12, Overheat protector over heat protector switch.





Specifications:

Standard:

GB/T16585-1996,GB14522-93,GB/T16422.3-97

Inner Box Size(W*H*D):

50x60x50cm

Temperature Range:

Normal Temperature~200C

Control Mode:

Automatic Calculation Controller

Temperature Display:

0.1C

Control Accuracy:

 3C

Distribution Accuracy:

 0.1C(at-100C)

Time Memory:

0-999 hours, Power Failure Memory Type, with Buzzer

Wheel Speed:

45cm,10±2 round/ min

UV Light Source:

UV300W Bulb

Standard Accessories:

Shelf Board 2 pieces

Heating Method:

Hot Air Circulation

Security Devices:

Over-temperature power-off indicator light;
Safety overload switch ammeter

Manufacturing Material:

Internal Stainless Steel SUS304;
External Advanced Baking Varnish

Outside Dimension (W*D*H):

93x57x131cm

Weight:

140kg





Function:

Anti-yellowing resistance aging testing chamber can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70C, in theory as exposed to the atmosphere for 6 months.



Anti-yellowing: Anti-yellowing resistance aging testing chamber stimulates the atmosphere environment, driven by the sun ultraviolet radiation. Its generally thought that the appearance change at 50C for 9 hours, in theory as exposed to atmosphere for 6 months.





Features:

1) To simulate outdoor weathering, the Anti-yellowing resistance aging testing chamber sexposes materials to alternating cycles of UV light and moisture at controlled, elevated temperatures. It simulates the effects of sunlight using special fluorescent UV lamps. It simulates dew and rain with condensing humidity and/or water spray.
2) Anti-yellowing resistance aging testing chamber is the simplest, most reliable, and easiest to use weathering tester available. With thousands of testers in use worldwide, it is the world's most widely used weathering tester.





Structure:

1. The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.

2. The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.





Control System:

1. Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.

2. The radiometer probe is fixed so as to avoid the frequent installation and disassembly.

3. The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.

4. The radiation intensity is not more than 50W/m2.

5. The illumination and condensation can be controlled independently or alternating and circularly.
