|Power:||Electronic||Power Supply:||Room Temperature -450 ℃|
|Timing Accuracy:||0.1s||Displacement Accuracy:||0.01mm|
universal tensile testing machine,
plastic testing instrument

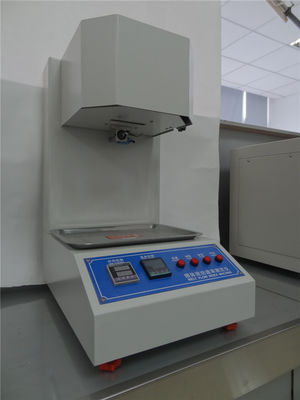

LCD Plastic Testing Machine , Plastic Melt Flow Rate Testing Equipments
Plastic Melt Flow Rate Testing Equipments (melt index) is plastic at a temperature and load, the melt every 10 minutes through a standard capillary die quality or melt volume, with MFR (MI) or the MVR value, which can distinguish thermoplastic adhesive in the molten state flow characteristics. For thermoplastics and chemical fiber raw materials, quality assurance of products and other products of great significance.
HD-R803 type with industrial PLC programmable controller, LCD operating platform, temperature part is separate temperature unit, LED digital display. Automatic temperature control aircraft from the operating method is divided into manual, time control, automatic three cut material way, to achieve Quality Act (MFR) and the volumetric method (MVR) two kinds of test methods; aircraft to the measured temperature of the test material the melt density, the system also has the temperature calibration.
LCD Plastic Melt Flow Rate Testing Equipments (also known as melt index meter) was measured under certain conditions thermoplastic melt flow rate of the special equipment. With the determination of melt flow rate MFR, measured melt volume rate MVR, measured melt density ρ, measured melt flow rate ratio FRR and other functions, this machine high precision temperature control, key parts nitriding treatment, high strength and hardness , small deformation accurately measure the flow rate which provides a good condition.
According to the standard
LCD Plastic Melt Flow Rate Testing Equipments reference standards: ISO 1133, ASTM D1238, JIS-K72A, GB/T3682, JB/T5456, JJG 878
Polyethylene, polypropylene, polystyrene
ABS, polyamide, fiber resin
Acrylic, polyoxymethylene, fluoroplastics
Pvc, pvt polycarbonate and other plastic materials
The main technical parameters:
|Testing range||0.1-800.00g/10min (MFR)|
|Temperature range||Room temperature~400°C|
|Standard loads||325g, 875g, 960g, 1200g, 1640g, 2500g, 4100, 5000g & 5000g|
|Combination load||325g, 1200g, 2160g, 3800g, 5000g, 7160g, 10000g, 21600g|
|Material cutting method||Manual, timing and automatic cutting (optional)|
|Land of piston||Diameter 9.4742±0.0076mm, length: 6.35±0.13mm|
|Thin hole pattern||
External diameter: 9.5±0.02mm;
bore diameter 2.0955±0.0051mm; length 8.00±0.025mm
Packaging Dimensions: (L×W×H) 415×525×615mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service:
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service :
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
