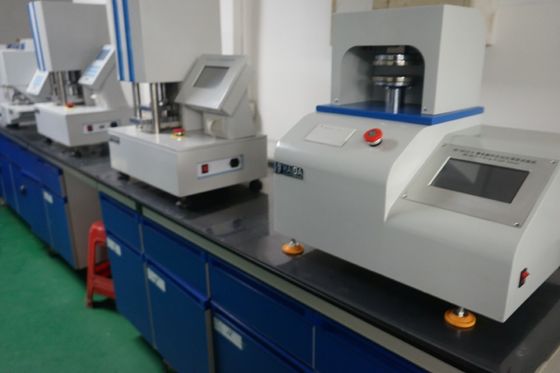

Computer Servo Crushing Strength Paper Testing Equipments Multi-function With LCD Touch Screen

Brand Name:	HAIDA
Model Number:	HD-A513-2
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

Electronic

Side Pressure Guide Block:

Thickness 20mm, Length 120mm

Dimension (L×W×H):

(L × W × H) 580mm × 420mm × 550mm

Weight:

Approx. 70 Kg

Resolution:

1/100,000

Capacity (Optional):

10, 20, 50, 100, 200 Kg

Supply Ability:

300 Sets per Month Haida

Highlight:

paper tensile strength tester

paper testing instruments

Product Description

Computer Servo Crushing Strength Paper Testing Equipments Multi-function With LCD Touch Screen

Applicable industry:

Computer Servo Crushing Strength Paper Testing Equipment applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.

The main technical parameters are as follows:

Item	Parameter
Capacity selection	200KG;
Induction	LOAD CELL force sensor;
Unit switching	"kgf", "N", "lbf", "gf", "KN";
Load resolution	1 / 100,000;
The highest resolution	0.1N;
Test speed	(10 ± 3) mm / min;
Pressure plate	diameter 118mm
Ring pressure sample	152mm × 12.7mm;
Edge pressure sample	100mm × 25mm;
Side pressure guide block	thickness 20mm, length 120mm;
Display mode	touch screen operation;
Language selection	Chinese and English exchange;
Platen parallelism	± 0.02mm;
Optional configuration	flat pressure sampler, side pressure sampler, ring pressure sampler, bonding fixture, side pressure fixture, ring pressure fixture;
Dimensions	(L × W × H) 580mm × 420mm × 550mm;
Weight	about 70kg;
Power supply	1∮, 220V, 50Hz, 2A

Specifications

1.Computer Servo .
2.Multi-function .
3.Ring crush & edge compressive.

Equipment description:

Computer Servo Crushing Strength Paper Testing Equipment is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. Record the value of force,automatically keep the maximum value of fracture strength, decomposition degrees has improved 100 times than the needle display type. This equipment is important to control the quality product.

Corresponding standard :

IS02759,GB/T1539,QB/T1057,ASTMD3786,GB/T6564,GB/T465
