Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Product Name: | Xenon Test Chamber |
|---|---|---|---|
| Rainfall Time: | 1~9999min, Adjustable | Sample And Xenon Lamp Distance: | 250～300mm |
| Heating/humidifying Power: | 4.5KW/3KW | Model: | HD-E711-1 |
| High Light: | accelerated aging chamber,aging test machine |
||

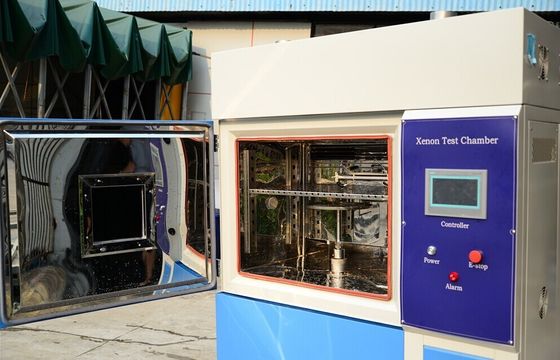

Anti Weather Plastic q-Sun Xenon Test Chamber With Moeller Programmable Controller
Features:
1. Advanced design technology and concept
2. Excellent technology of producing and outstanding system of quality management,
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet, visible and infrared.
4. A full range of spectrum, necessary for most textile sun and color fastness test.
Detailed Product Description
Application:
This xenon testing machine is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;
GB/T1865-97(2007),GB/T9344-88,GB/T16422.2-99,GB/T2423.24-1995,ASTMG155,ISO10SB02/B04,SAEJ2527,SAEJ2412
XenonTesting Machine
| Studio size (mm) | 750*500*600mm |
| External size (mm) | 1350X1200X1750 (length × depth × height) |
| Temperature range | normal temperature ~80℃ |
| Humidity range | light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable |
| Temperature of the test blackboard | adjustable from 45℃ to 100℃ (deviation ±3℃) |
| Temperature fluctuation | ≤±0.5℃ |
| Temperature uniformity | ≤±2.0℃ |
| Humidity fluctuation | ≤±2% |
| Glass filter | borosilicate glass |
| Xenon light source | imported air-cooled xenon arc source |
| Xenon lamp power | 2.5kw, xenon lamp power is 2.5kw ×3 = 5.4kw, life is 1200 hours |
| Rainfall time | 1 ~ 9999 minutes, continuous rainfall adjustable |
| Rainfall cycle | 1 ~ 240 minutes, interval (break) rainfall adjustable |
| Spray nozzle aperture | Ф 0.8 mm (return hose ultra-fine filters to prevent the nozzle blocking) |
| Spraying period (spraying time/no spraying time) | 18min/102min or 12min/48min(spraying time/no spraying time) |
| Water spraying pressure | 0.12 ~ 0.15Mpa |
| Water pressure | 0.12 ~ 0.15kpa |
| Sample rack | the size of sample tray is 75×300mm |
| The continuous adjustable time of illumination cycle | 1 ~ 999 hours |
| Xenon lamp spectral wavelength | 290nm ~ 800nm adjustable |
| Irradiance range | 500W ~ 1200W/㎡ adjustable. |
| Distance from arc center to sample | 250 ~ 300mm |
| Effective exposure area | 6400C㎡ |
| Heating power | 4.5kw |
| Humidifying power | 3KW |
Refrigeration system and compressor:
1.Refrigerating compressor: imported French "taikang" fully enclosed refrigerating unit.
2.Cooling method: air cooling
3.Refrigerant: environmental friendly refrigerant
4.Main refrigeration accessories: Japan "arugong" solenoid valve;American "Emerson" drying filters, etc.
5.Excellent quality of domestic and foreign well-known brands of air-cooled condenser and fin multi - section evaporator.
Advantages of refrigeration system:
1.Improved lubrication and lower piston temperature bring greater reliability;
2.Streamlined body to improve airflow management;Reduced pressure, improved refrigeration efficiency;
3.Top discharge valve provides continuous minimum discharge line pulse;
4.SENTRONIC provides reliable lubrication protection system;
5.Use of environmentally friendly refrigerants R23, R404A (excluding CFCS) not prohibited by the Montreal convention or the London amendment
