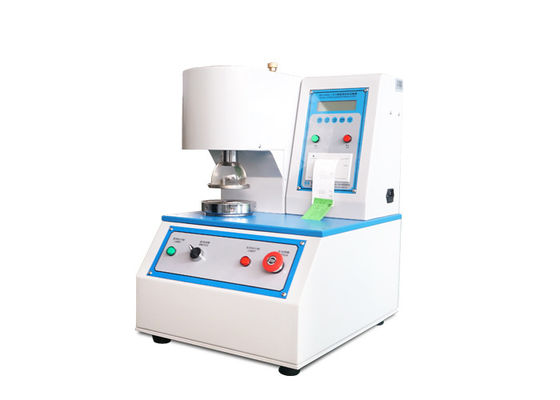

LCD Display Paper Testing Equipments Burst Strength With Stainless Steel SUS304

LCD Display Paper Testing Equipments Burst Strength With Stainless Steel SUS304
LCD Display Paper Testing Equipments Burst Strength With Stainless Steel SUS304
video play

Large Image :  LCD Display Paper Testing Equipments Burst Strength With Stainless Steel SUS304

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A504-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Display: LCD Power: 1-phase, AC220± 10%, 50 Hz
Port: Anti-vibration Motor 1/8 HP Pressure Range:: 250~5600kpa
Optional Configuration:: Printer, Air Pump Weight:: Approx. 70 Kg
High Light:

paper tensile strength tester

,

paper testing machine

LCD Display Paper Testing Equipments Burst Strength With Stainless Steel SUS304





Specifications

LCD Display Paper Burst Strength Testing Machines

Advantage:
1. LCD Display
2. print max. min. average value,
3.coeficient variation, burst index



The parameters



Capacity  (Optional):  High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Optional Configuration:  Printer, Air Pump
Power:  1-phase, AC220± 10%, 50 Hz
Weight:  Approx. 70 kg
Dimension (L×W×H):  445×425×525 mm
Operation Method:  Automatic
Motor:  Anti-vibration Motor 1/8 HP
Opening in Lower Clamp:  31.5 ± 0.05 mm Diameter
Opening in Upper Clamp:  31.5 ± 0.05 mm Diameter
Material of the Ring:  Stainless Steel SUS304
Display:  LCD
Indicating Method:  Digital
Sensing method:  Pressure Transmitter
Oil:  100% silicon oil
Specimen Clamping Force:  >690kpa
Speed of Compression:  High Pressure 170± 10ml/min
Pressure Range:  250~5600kpa
Accuracy:  ± 0.5%
Unit: Kpa, psi, kg/cm^2



Advantages:



can print the max. min. and average value, burst index, coefficient of variation, the amount of test groups.



Paperboard Burst Strength Testers
