Product Details:
Payment & Shipping Terms:
|
| System: | Balanced Temperature & Humidity Control System | Temp. Range: | -70°C ~100°C Or 150°C |
|---|---|---|---|
| Humid. Range: | 30% ~ 98%R.H. | Temp. & Humid. Accuracy: | ± 0.5°C; ± 2%R.H |
| Temp. & Humid. Regularity: | ± 2°C; ± 3% RH | Resolution: | 0.01°C, 2%, P.I.D Control |
| Highlight: | humidity temperature test chamber,humidity and temperature controlled chamber |
||

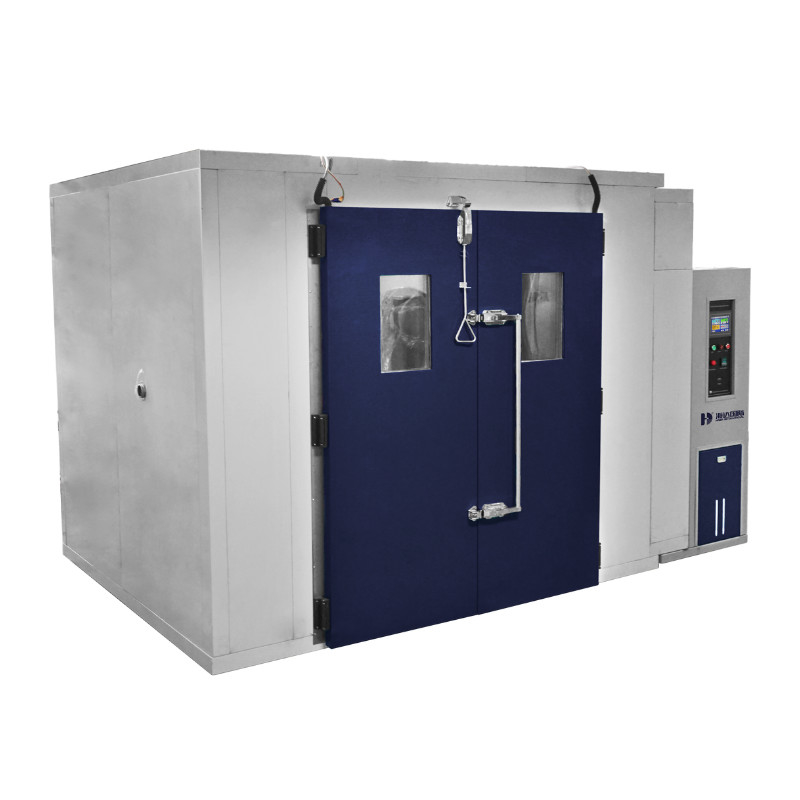

Electronic Big Capacity Temperature Humidity Chambers
Product Description:
Professional Walk-in Temperature Humidity Testing Room are environmentally conditioned rooms that may be configured to almost any size or footprint. We also called Environmental Chambers. Walk-in chambers are useful when testing large objects and performing batch testing. Of all environmental test chambers, Walk-in chambers are typically the largest in size.
The main technical parameters:
| Professional Walk-in Temperature Humidity Testing Room | |
| Model | HD-E705-8 |
| System | Balanced Temperature & Humidity Control System |
| Temp. range | -70°C ~100°C or 150°C |
| Humid. range | 30% ~ 98%R.H. |
| Temp. & Humid. accuracy | ± 0.5°C; ± 2%R.H |
| Temp. & Humid. regularity | ± 2°C; ± 3% RH |
| Resolution | 0.01°C, 2%, P.I.D control |
| Heating up | -55°C ~ +85°C within 50 min |
| Heating down | +85°C~ -55°Cwithin 60min |
| Interior dimension(L×W×H) | 100×100×120cm optional |
| Exterior dimension(L×W×H) | 165×150×175cm optional |
| Interior material | Stainless steel plate(SUS304) |
| Exterior material | Stainless steel plate(SUS304) |
| Insulation | Rigid foam |
| Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
| Display | LCD |
| Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories | Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
| Power | 3#, AC380V 50Hz |
Product performance & features:
1. Temperature humidity test room has a big temperature / humidity range and can meet user’s entire requirement. It adapts to unique balance thermoregulation & humidifying way and can get a safety, precise temperature humidity environment. It has stability, balance heating, humidifying function and also can proceed in high precision, high stability temperature humidity control.
2. Temperature humidity test room is equipped with high precision intelligentized thermoregulator, temperature and humidity adapt LCD display control 7551 program instrument ( it also can use OYO-5461 according to user requirement), can choose the temperature humidity recode instrument.
3. Temperature humidity test room can choose computer for remote control according to the function
4. Automatic select the refrigerating circuit, the automatic control instrument can automatic choose operate refrigerating circuit’s function according to the temperature set value, and direct-on line starting refrigerating machine in high temperature condition which can cooling directly.
5. The interior door is equipped with big observation window which convenient for viewing the test status of specimen.
6. This product is equipped with advanced safety protection device --- residual current device; overheat protector, phase failure protector, water-break protector.
